Description
My TFT screen resolution is 292240, but my camera data is 320 240.
I want to show the camera data on the screen.
What MCU/Processor/Board and compiler are you using?
ARM M4 288MHz
What LVGL version are you using?
8.3
What do you want to achieve?
Show the Image and cut some parts
What have you tried so far?
Code to reproduce
Add a code snippet which can run in the simulator. It should contain only the relevant code that compiles without errors when separated from your main code base.
The code block(s) should be formatted like:
m_UVC_dsc_t.header.cf = LV_IMG_CF_TRUE_COLOR;
m_UVC_dsc_t.header.always_zero = 0;
m_UVC_dsc_t.header.reserved = 0;
m_UVC_dsc_t.header.w = 320;
m_UVC_dsc_t.header.h = 240;
m_UVC_dsc_t.data_size = 320 * 240 * 2;
m_pConUVC = lv_obj_create(guider_ui.screen);
lv_obj_set_pos(m_pConUVC, 0, 0);
lv_obj_set_size(m_pConUVC, 296, 240);
lv_obj_set_scrollbar_mode(m_pConUVC, LV_SCROLLBAR_MODE_ON);
lv_obj_clear_flag(m_pConUVC, LV_OBJ_FLAG_HIDDEN);
lv_obj_set_style_border_width(m_pConUVC, 0, LV_PART_MAIN|LV_STATE_DEFAULT);
lv_obj_set_style_radius(m_pConUVC, 0, LV_PART_MAIN|LV_STATE_DEFAULT);
lv_obj_set_style_bg_opa(m_pConUVC, 0, LV_PART_MAIN|LV_STATE_DEFAULT);
lv_obj_set_style_bg_color(m_pConUVC, lv_color_hex(0xffffff), LV_PART_MAIN|LV_STATE_DEFAULT);
lv_obj_set_style_bg_grad_dir(m_pConUVC, LV_GRAD_DIR_NONE, LV_PART_MAIN|LV_STATE_DEFAULT);
lv_obj_set_style_pad_top(m_pConUVC, 0, LV_PART_MAIN|LV_STATE_DEFAULT);
lv_obj_set_style_pad_bottom(m_pConUVC, 0, LV_PART_MAIN|LV_STATE_DEFAULT);
lv_obj_set_style_pad_left(m_pConUVC, 0, LV_PART_MAIN|LV_STATE_DEFAULT);
lv_obj_set_style_pad_right(m_pConUVC, 0, LV_PART_MAIN|LV_STATE_DEFAULT);
lv_obj_set_style_shadow_width(m_pConUVC, 0, LV_PART_MAIN|LV_STATE_DEFAULT);
m_pUVCImage = lv_img_create(m_pConUVC);
lv_obj_set_size(m_pUVCImage, 320, 240);
lv_obj_align(m_pUVCImage, LV_ALIGN_CENTER, 0, 0);
lv_obj_set_style_pad_top(m_pUVCImage, 0, LV_PART_MAIN|LV_STATE_DEFAULT);
lv_obj_set_style_pad_bottom(m_pUVCImage, 0, LV_PART_MAIN|LV_STATE_DEFAULT);
lv_obj_set_style_pad_left(m_pUVCImage, 0, LV_PART_MAIN|LV_STATE_DEFAULT);
lv_obj_set_style_pad_right(m_pUVCImage, 0, LV_PART_MAIN|LV_STATE_DEFAULT);
lv_obj_set_style_border_width(m_pUVCImage, 0, LV_PART_MAIN|LV_STATE_DEFAULT);
And In Camera callback:
unsigned short* pd;
m_isUVCUpdate = 1;
m_UVC_dsc_t.data = (unsigned char*)pdata;
pd = (unsigned short*)pdata;
for (int i = 0; i < 320 * 240; i ++) {
pd[i] = swap_short_endian(pd[i]);
}
lv_img_set_src(m_pUVCImage, &m_UVC_dsc_t);

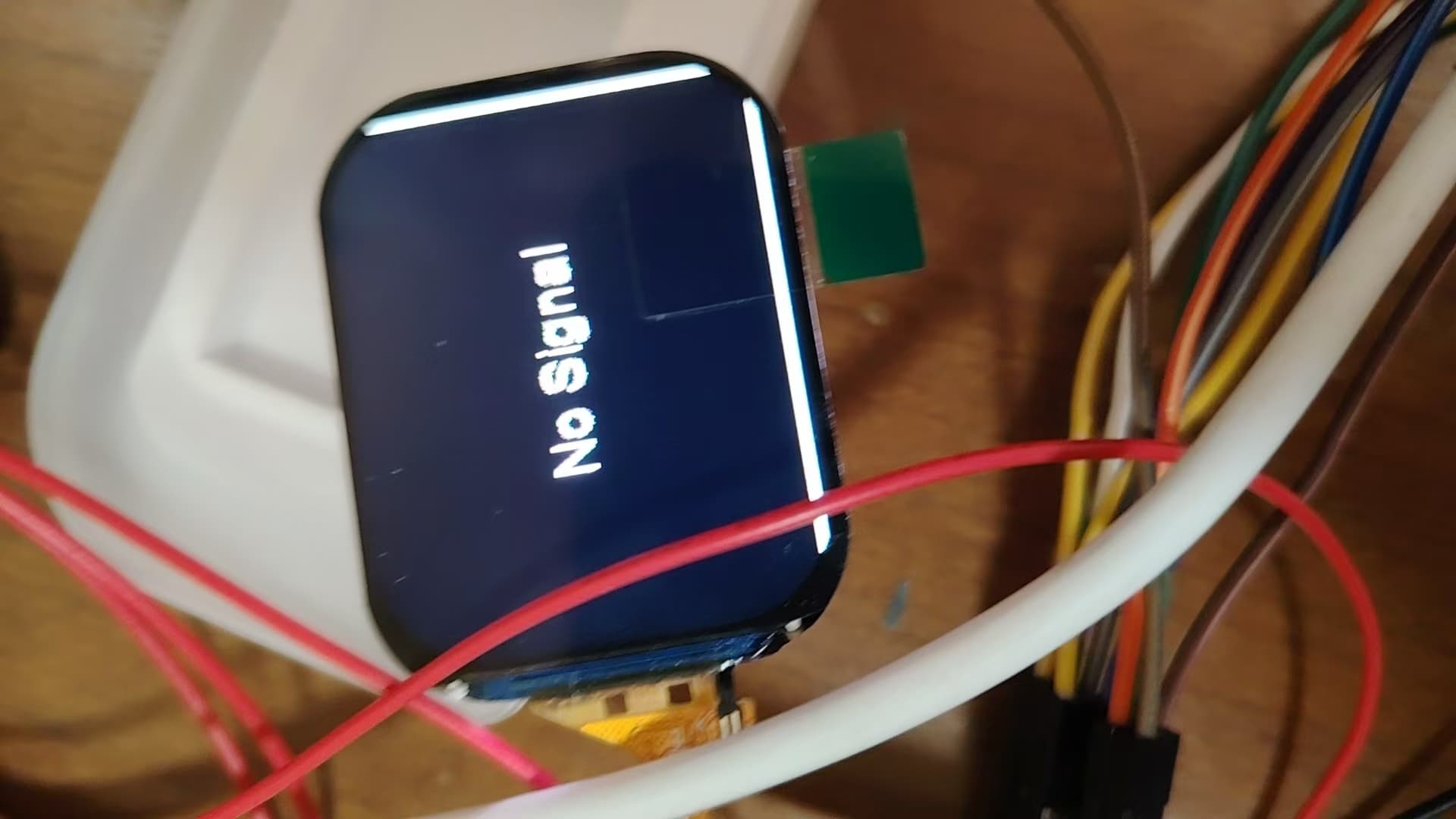

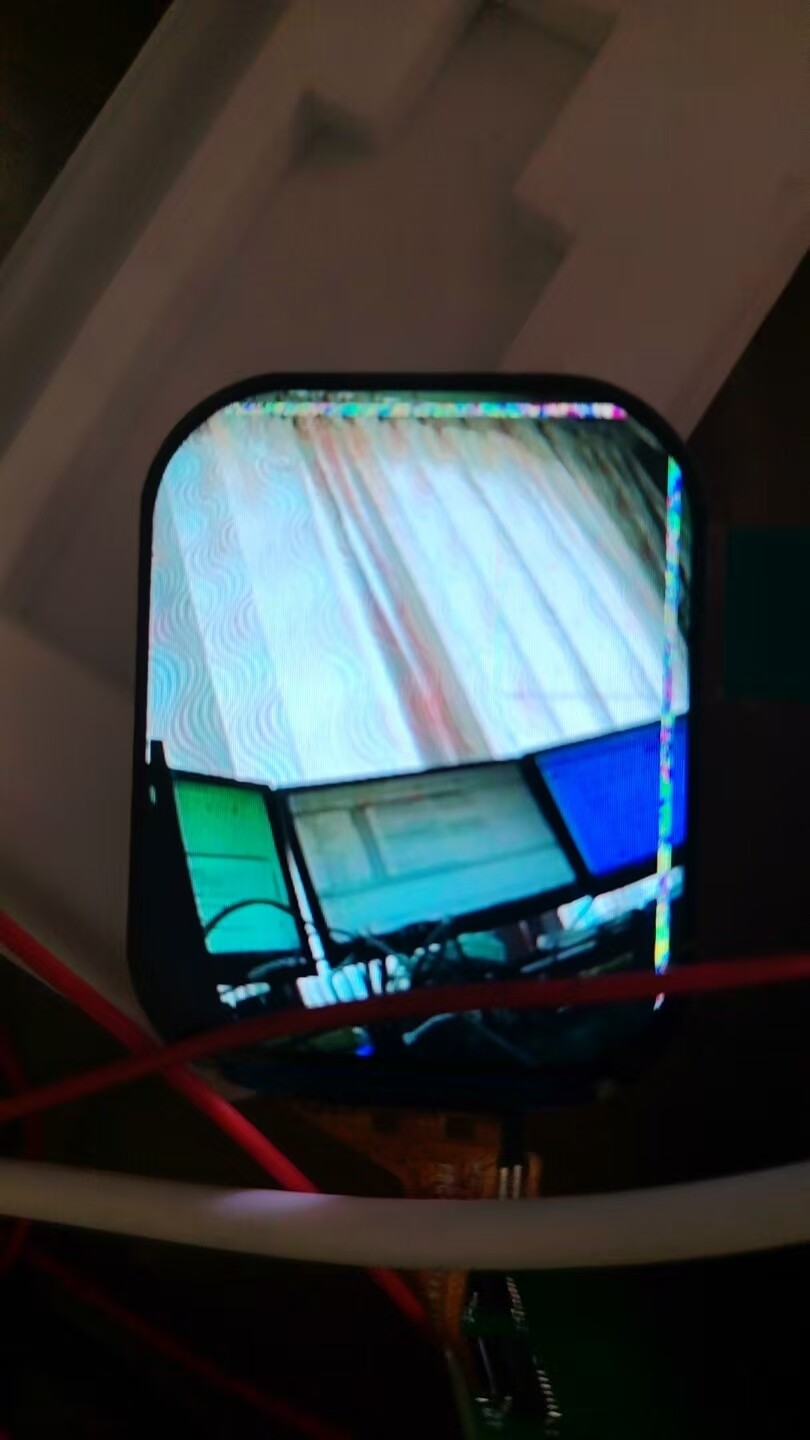

Now I can show the camera data, but it have a strange retangle. How to delete it?
And another question, how to support LSB RGB data? now you can see I need swap each data, it is not good solution.
