Description
What MCU/Processor/Board and compiler are you using?
ESP32-2432S028, CYD, VS PlatformIO, eez Studio
What LVGL version are you using?
9.2.2
What do you want to achieve?
Update label using function lv.label_set_text_fmt(objects.label_number, “%d”, counter) after click on Button. New displayed value should be value of counter.
Function is in void loop() of main.cpp.
What have you tried so far?
Check counter value, by debug printf. It is O.K., counter is updated after each click on button.Counter is defined as integer.
Check that object.label_number is not NULL, it is O.K.
Check for label overlay, but project is simple, there is not other label.

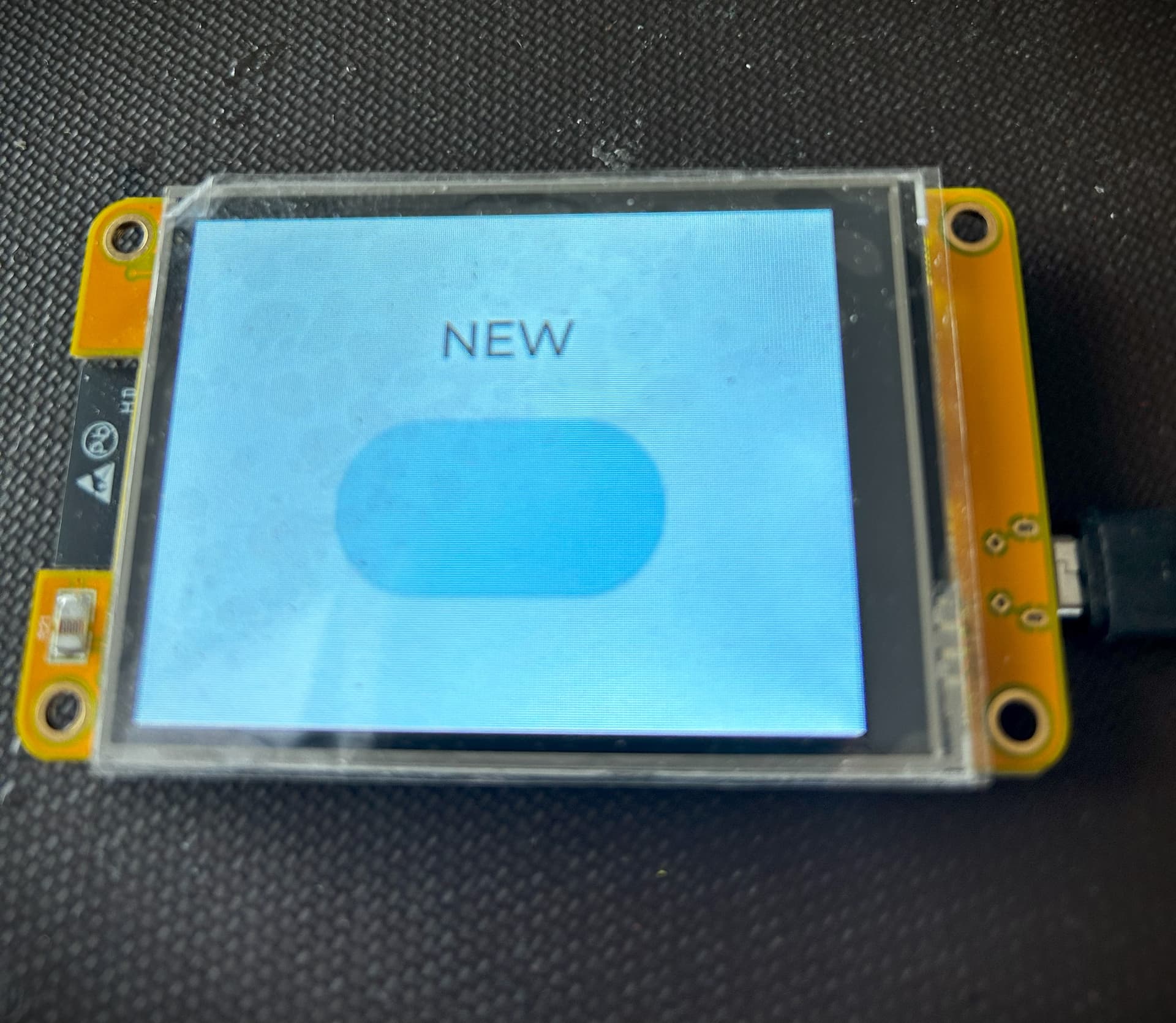

But text label with text “NUM” always remain with the same.
I try to use some help of Copilot, but it finished always in dead end. I am just learning programming and spent on this problem about 2 months.
Code to reproduce
main.cpp
/*
// LVGL demo for ESP32 with TFT_eSPI and XPT2046 touch controller
#include <Arduino.h>
#include <memory>
#include <lvgl.h>
#include "vars.h"
#include "ui.h"
#include "screens.h"
#include <TFT_eSPI.h>
#include <XPT2046_Touchscreen.h>
lv_disp_t *disp; // Global display variable
lv_indev_t *indev; // Touchscreen input device
uint8_t *draw_buf; // Display buffer
uint32_t lastTick = 0; // Used to track the tick timer
// The CYD touch uses some non default SPI pins
// The touch CS pin is defined in the User_Setup.h file
// The touch IRQ pin is defined in the XPT2046_Touchscreen.h file
#define XPT2046_IRQ 36
#define XPT2046_MOSI 32
#define XPT2046_MISO 39
#define XPT2046_CLK 25
#define XPT2046_CS 33
#define TFT_HOR_RES 320
#define TFT_VER_RES 240
#define DRAW_BUF_SIZE (TFT_HOR_RES * TFT_VER_RES / 10 * (LV_COLOR_DEPTH / 8))
TFT_eSPI tft = TFT_eSPI();
SPIClass touchscreenSpi = SPIClass(VSPI);
XPT2046_Touchscreen touchscreen(XPT2046_CS, XPT2046_IRQ);
uint16_t touchScreenMinimumX = 200, touchScreenMaximumX = 3700, touchScreenMinimumY = 240, touchScreenMaximumY = 3800;
//lvgl function to display message from LVGL if LV_USE_LOG is enabled
#if LV_USE_LOG != 0
void my_print(lv_log_level_t level, const char *buf) {
LV_UNUSED(level);
Serial.println(buf);
Serial.flush();
}
#endif
//transfer the display buffer to the screen
// This function is called by LVGL to flush the display buffer to the screen
void my_disp_flush(lv_display_t *disp, const lv_area_t *area, uint8_t *color_p) {
if (area->x2 < 0 || area->y2 < 0 || area->x1 > TFT_HOR_RES - 1 || area->y1 > TFT_VER_RES - 1) {
lv_display_flush_ready(disp);
return;
}
// Set the address window for the area to be updated
tft.startWrite();
tft.setAddrWindow(area->x1, area->y1, area->x2 - area->x1 + 1, area->y2 - area->y1 + 1);
// Push the pixel data to the display
tft.pushColors((uint16_t *)color_p, (area->x2 - area->x1 + 1) * (area->y2 - area->y1 + 1), true);
tft.endWrite();
// Notify LVGL that the flush is complete
lv_display_flush_ready(disp);
/*
// Debugging output
Serial.print("Flushing area: x1=");
Serial.print(area->x1);
Serial.print(", y1=");
Serial.print(area->y1);
Serial.print(", x2=");
Serial.print(area->x2);
Serial.print(", y2=");
Serial.println(area->y2);
*/
}
/*Read the touchpad*/
void my_touchpad_read(lv_indev_t *indev, lv_indev_data_t *data) {
if (touchscreen.touched()) {
TS_Point p = touchscreen.getPoint();
//Map this to the pixel position
data->point.x = map(p.x, touchScreenMinimumX, touchScreenMaximumX, 0, TFT_HOR_RES - 1); /* Touchscreen X calibration */
data->point.y = map(p.y, touchScreenMinimumY, touchScreenMaximumY, 1, TFT_VER_RES - 1); /* Touchscreen Y calibration */
data->state = LV_INDEV_STATE_PRESSED;
/*
//Serial.print("Touch detected at: ");
Serial.print("Raw X: ");
Serial.print(p.x);
Serial.print(", Raw Y: ");
Serial.print(p.y);
Serial.print(" -> Mapped X: ");
Serial.print(data->point.x);
Serial.print(", Mapped Y: ");
Serial.println(data->point.y);
*/
} else {
data->state = LV_INDEV_STATE_RELEASED;
}
}
void setup() {
Serial.begin(115200);
//Initialize the display ADDED
tft.init();
tft.setRotation(1); // Set display to landscape mode
Serial.println("LVGL demo setup"); //(LVGL_Arduino);
//Some basic info on the Serial console
//String LVGL_Arduino = "LVGL demo ";
//LVGL_Arduino += String('V') + lv_version_major() + "." + lv_version_minor() + "." + lv_version_patch();
//Initialise the touchscreen
touchscreenSpi.begin(XPT2046_CLK, XPT2046_MISO, XPT2046_MOSI, XPT2046_CS); /* Start second SPI bus for touchscreen */
touchscreen.begin(touchscreenSpi); /* Touchscreen init */
touchscreen.setRotation(1); /* Inverted landscape orientation to match screen */
/* Inverted landscape orientation to match screen */
//Initialise LVGL GUI
lv_init();
// Allocate the display buffer
draw_buf = new uint8_t[DRAW_BUF_SIZE];
// Create the display
disp = lv_display_create(TFT_HOR_RES, TFT_VER_RES);
// Set the flush callback
lv_display_set_flush_cb(disp, my_disp_flush);
// Set the display buffers
lv_display_set_buffers(disp, draw_buf, NULL, DRAW_BUF_SIZE, LV_DISPLAY_RENDER_MODE_PARTIAL);
//Initialize the XPT2046 input device driver
indev = lv_indev_create();
lv_indev_set_type(indev, LV_INDEV_TYPE_POINTER);
lv_indev_set_read_cb(indev, my_touchpad_read);
//Done
Serial.println("LVGL Setup done");
//Integrate EEZ Studio GUI
ui_init();
// Create screens
create_screens();
}
void loop() {
lv_tick_inc(millis() - lastTick); //Update the tick timer. Tick is new for LVGL 9
lastTick = millis();
lv_timer_handler(); //Update the UI
delay(5);
Serial.print("Counter: ");
Serial.println(counter);
printf("Counter: %d\n", counter);
//lv_label_set_text_fmt(objects.label_number, "%d", counter);
}
*/
screen.c:
```c
/*
#include <string.h>
#include <stdio.h>
#include "screens.h"
#include "images.h"
#include "fonts.h"
#include "actions.h"
#include "vars.h"
#include "styles.h"
#include "ui.h"
#include <string.h>
objects_t objects;
lv_obj_t *tick_value_change_obj;
void create_screen_main() {
lv_obj_t *obj = lv_obj_create(0);
objects.main = obj;
lv_obj_set_pos(obj, 0, 0);
lv_obj_set_size(obj, 320, 240);
{
lv_obj_t *parent_obj = obj;
{
// ButtonIncrease
lv_obj_t *obj = lv_btn_create(parent_obj);
objects.button_increase = obj;
lv_obj_set_pos(obj, 83, 103);
lv_obj_set_size(obj, 154, 80);
lv_obj_add_event_cb(obj, action_increase_by_one, LV_EVENT_CLICKED, (void *)0);
lv_obj_set_style_radius(obj, 40, LV_PART_MAIN | LV_STATE_DEFAULT);
lv_obj_set_style_opa(obj, 50, LV_PART_MAIN | LV_STATE_DEFAULT);
}
{
// LabelNumber
lv_obj_t *obj = lv_label_create(parent_obj);
objects.label_number = obj;
lv_obj_set_pos(obj, 127, 49);
lv_obj_set_size(obj, LV_SIZE_CONTENT, LV_SIZE_CONTENT);
lv_label_set_text(obj, "NUM");
lv_obj_add_flag(obj, LV_OBJ_FLAG_OVERFLOW_VISIBLE);
lv_obj_set_style_text_font(obj, &lv_font_montserrat_26, LV_PART_MAIN | LV_STATE_DEFAULT);
}
}
tick_screen_main();
}
void tick_screen_main() {
}
typedef void (*tick_screen_func_t)();
tick_screen_func_t tick_screen_funcs[] = {
tick_screen_main,
};
void tick_screen(int screen_index) {
tick_screen_funcs[screen_index]();
}
void tick_screen_by_id(enum ScreensEnum screenId) {
tick_screen_funcs[screenId - 1]();
}
void create_screens() {
lv_disp_t *dispp = lv_disp_get_default();
lv_theme_t *theme = lv_theme_default_init(dispp, lv_palette_main(LV_PALETTE_BLUE), lv_palette_main(LV_PALETTE_RED), false, LV_FONT_DEFAULT);
lv_disp_set_theme(dispp, theme);
create_screen_main();
}
*/
