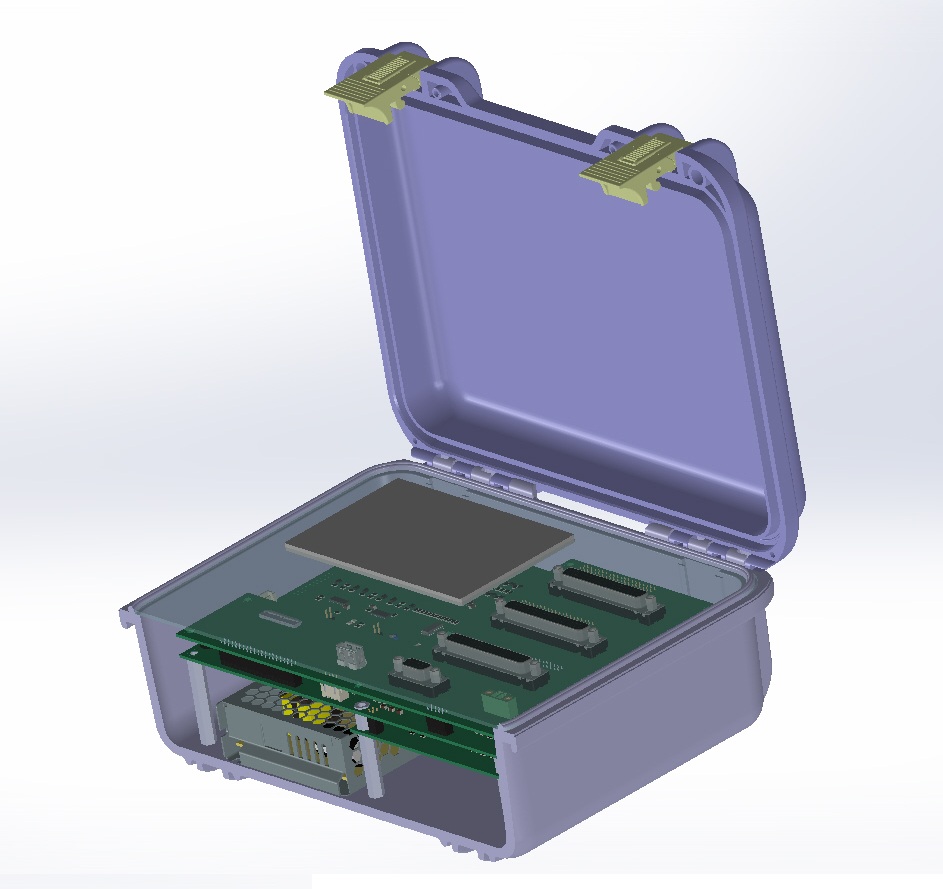

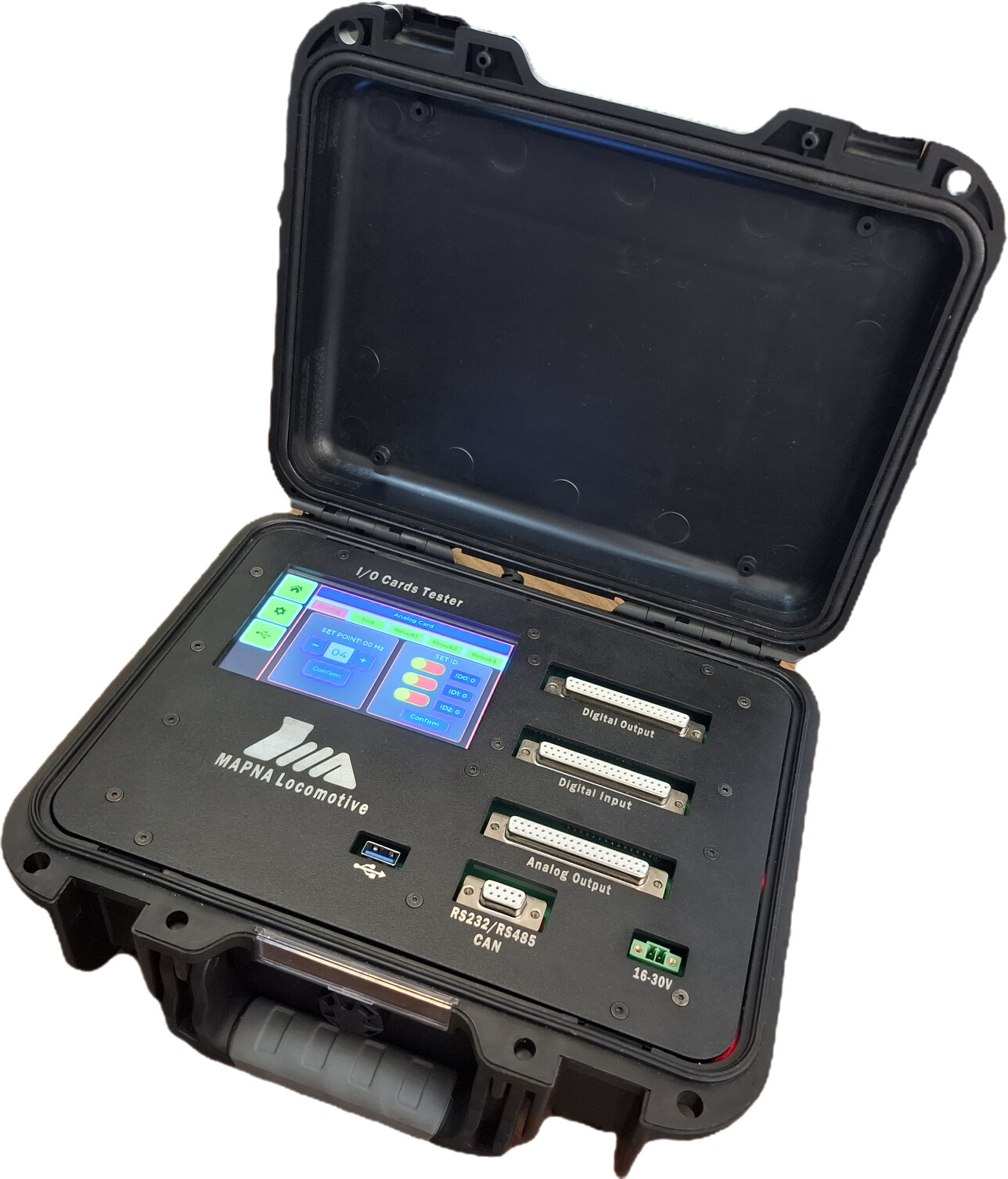

**Introducing our new product:

Industrial Embedded Test Platform for Locomotive I/O Validation**

We are proud to introduce our latest embedded test platform, designed for locomotive I/O validation and testing.

Key features:

  • Hardware and software design, implementation, and integration
  • 5-inch LCD with resistive touch
  • UI developed with LVGL

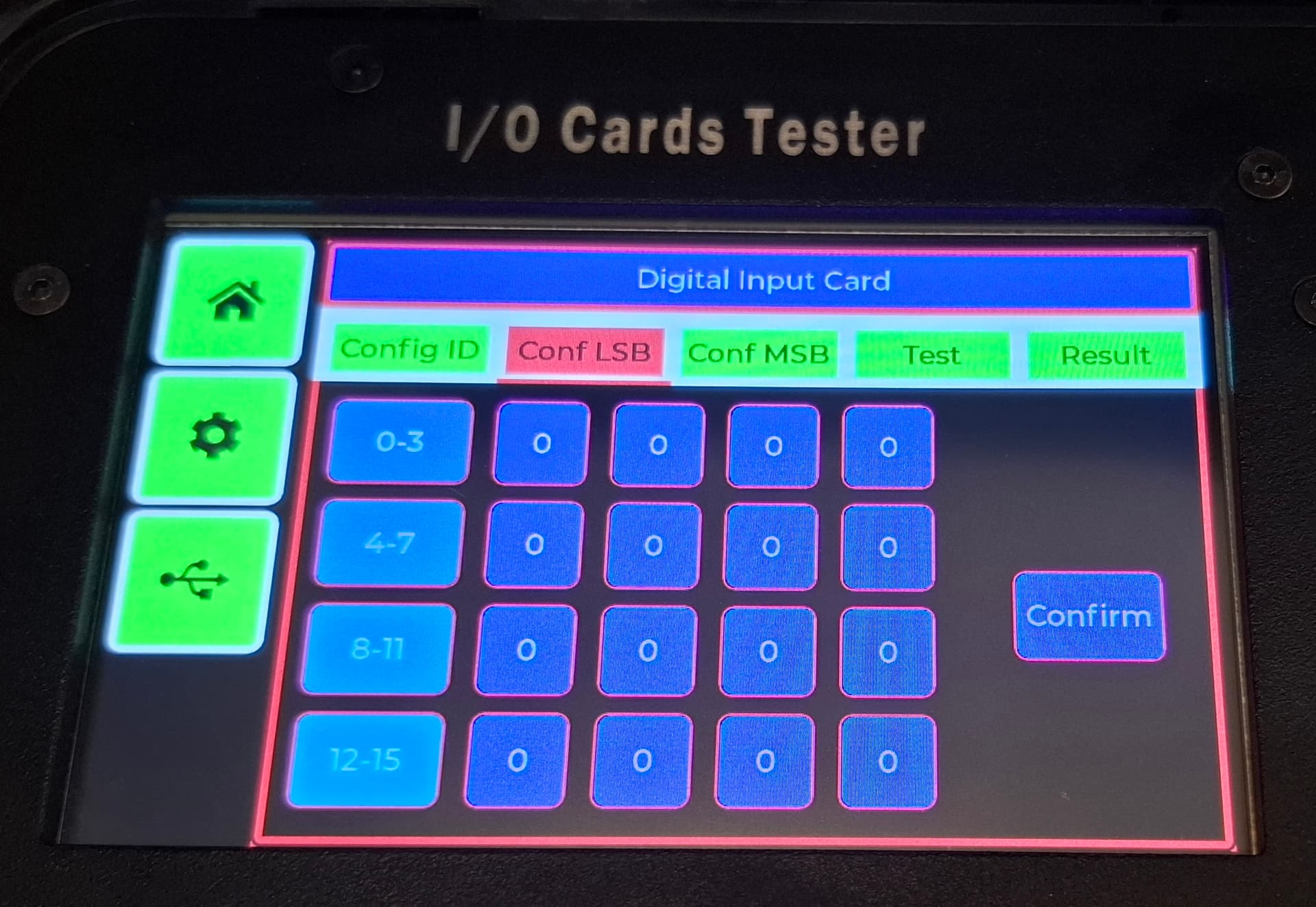

  • 32 digital inputs
  • 32 digital outputs

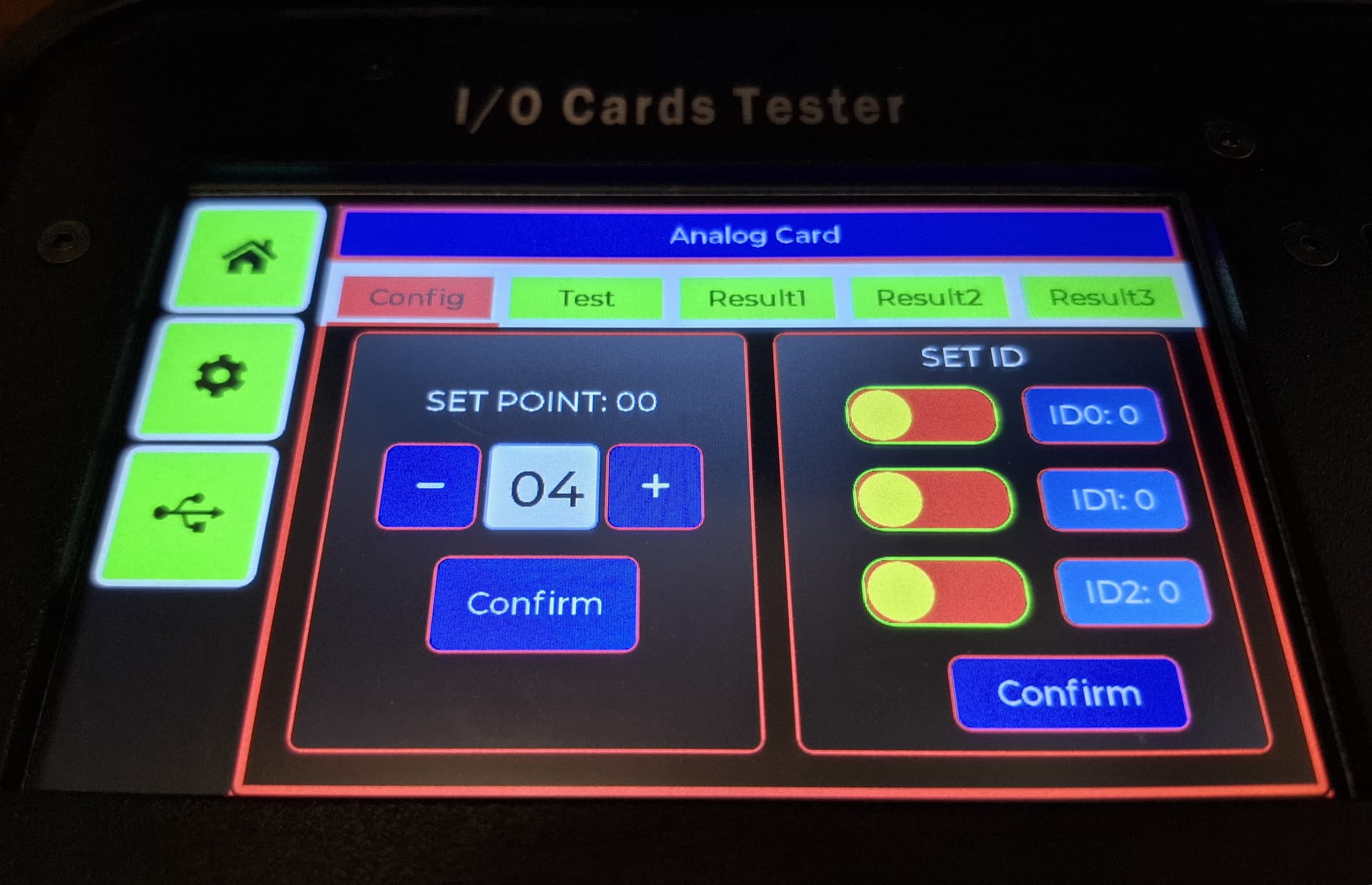

  • 24 analog outputs (4–20 mA)
  • CAN Bus communication for locomotive I/O card testing
  • Variable supply generation:
    • 16.6–30 V for I/O cards input supply testing (-30% to +25% according to EN 50155)
    • 50.4–90 V for I/O cards input channels testing (-30% to +25% according to EN 50155)

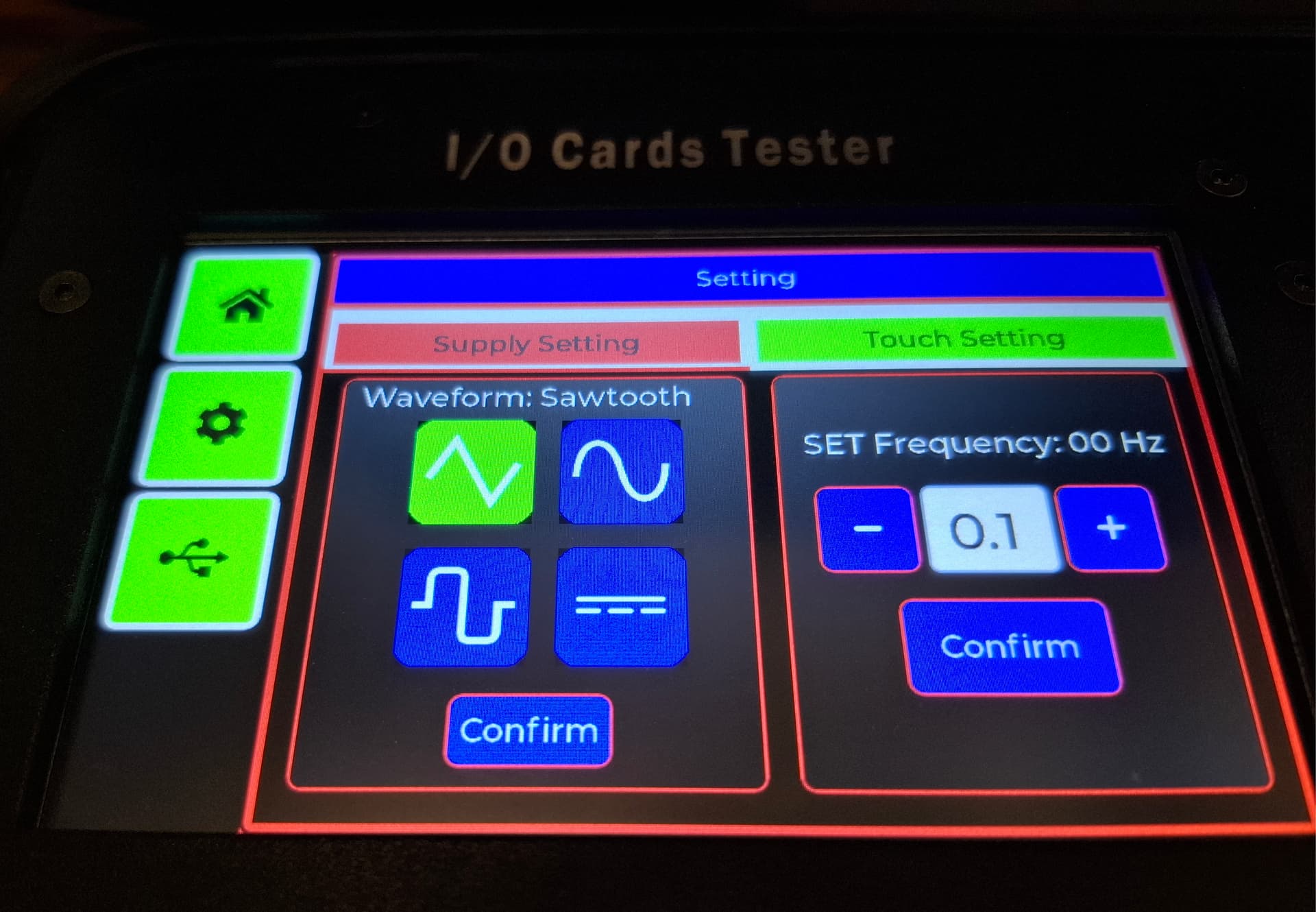

    • Generating different waveforms and frequencies for I/O cards supply test
  • Test results can be saved to a USB stick or sent to a PC
