Showing an image from the tf-card on the screen

How-to
1

I created a new topic a few days ago in another category (probably the wrong one?). Now I have improved my code, but I still can’t see my image.
I have been coding for the last 5 years (privately and in a higher technical school in Austria) in several languages, but this display is my final enemy.

Description

What MCU/Processor/Board and compiler are you using?

ESP32-S3-Touch-LCD-5 from Waveshare; Arduino IDE

What LVGL version are you using?

8.4

What do you want to achieve?

showing an image from the tf-card on the screen

What have you tried so far?

showing an image, which is stored on the esp32 as c-array: worked well. But for more than 2 pictures there is too little memory on the esp32.
That the image, i want from the tf-card, is shown in the Serial Monitor:

Listing directory: /System Volume Information
FILE: Panel_bmp.bmp  SIZE: 180054

Code to reproduce

I am using waveshare_sd_card.h

SPI.setHwCs(false);
    SPI.begin(SD_CLK, SD_MISO, SD_MOSI, SD_SS);
    if (!SD.begin()) {
        Serial.println("Card Mount Failed"); // SD card mounting failed
        return;
    }
    uint8_t cardType = SD.cardType();

    if (cardType == CARD_NONE) {
        Serial.println("No SD card attached"); // No SD card connected
        return;
    }

    Serial.print("SD Card Type: "); // SD card type
    if (cardType == CARD_MMC) {
        Serial.println("MMC");
    } else if (cardType == CARD_SD) {
        Serial.println("SDSC");
    } else if (cardType == CARD_SDHC) {
        Serial.println("SDHC");
    } else {
        Serial.println("UNKNOWN"); // Unknown Type
    }

    uint64_t cardSize = SD.cardSize() / (1024 * 1024);
    Serial.printf("SD Card Size: %lluMB\n", cardSize);

void lv_example_image_2(lv_obj_t * parent)
{
  Serial.println("Hello");
  listDir(SD, "/", 1);  // Listet alle Dateien im Root-Verzeichnis auf
    lv_obj_t * img = lv_img_create(parent);
    lv_img_set_src(img, "/Panel_bmp.bmp");
    lv_obj_align(img, LV_ALIGN_CENTER, 0, 80);


}

I can see sd Card Type, Hello and the Listing directory (panel_bmp.bmp) in SerialMonitor.
But the screen remains white.

Screenshot and/or video

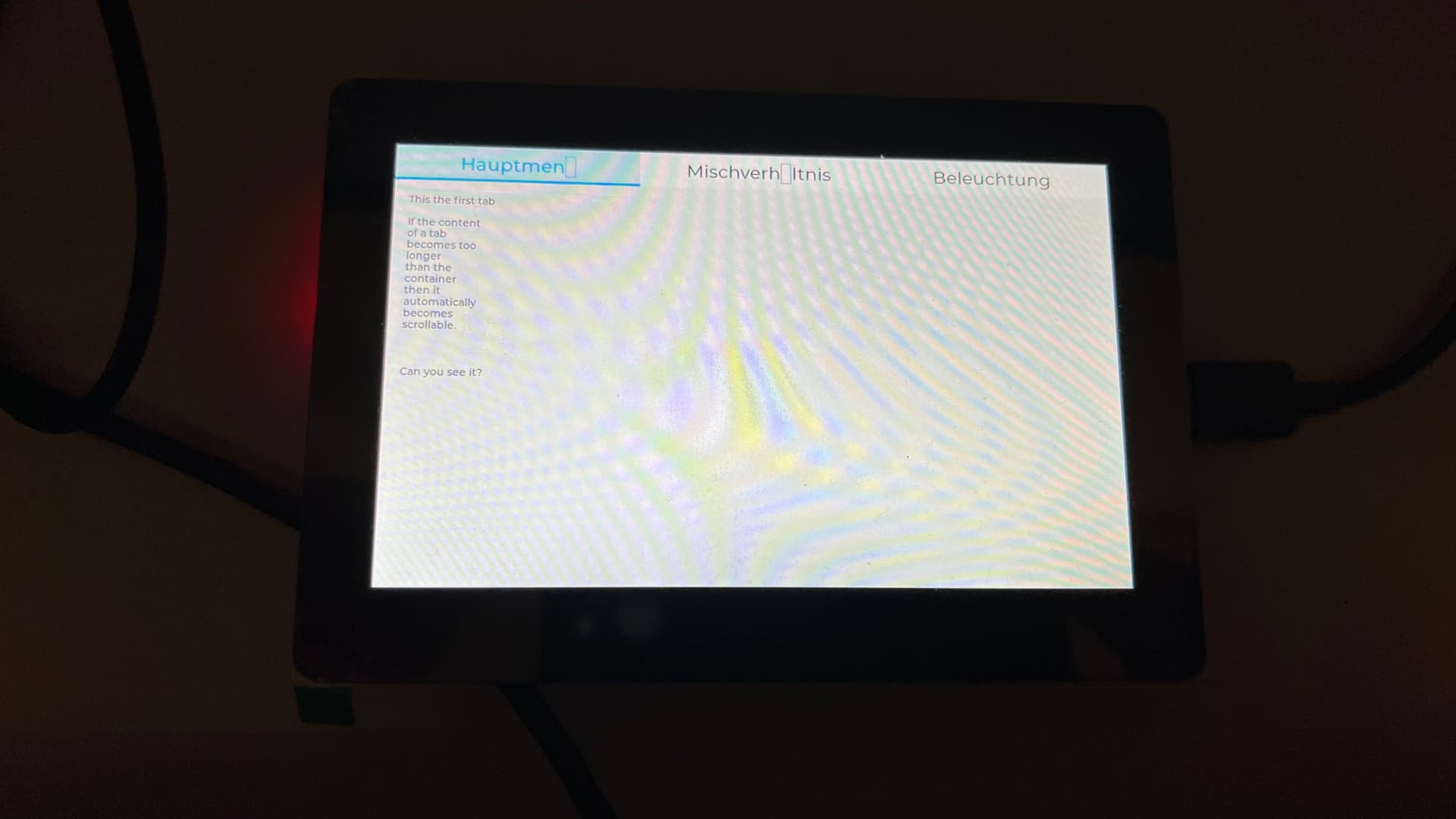

The things you can see in the picture is my tabview, in which i want to see the image

lv_example_image_2(tab1);

IMG_1501
IMG_15011920×1080 65.2 KB

I appreciate any help.

2

did you enabled LV_USE_BMP in your lv_conf.h ?

3

yes:

/*PNG decoder library*/
#define LV_USE_PNG 0

/*BMP decoder library*/
#define LV_USE_BMP 1

/* JPG + split JPG decoder library.
 * Split JPG is a custom format optimized for embedded systems. */
#define LV_USE_SJPG 0

or should I try using png or jpg instead?

4

Are you sure the path "/Panel_bmp.bmp" is correct ?
Are you sure that in your application file-system is correctly configured ?
You use listDir(SD, "/", 1); to list your SD where you specify that you need to use SD. But how lvgl may know that it need to use SD? For this purpose lvgl uses filestem driver.
