Description
What MCU/Processor/Board and compiler are you using?
MCU: ESP32-P4
Board: JC8012P4A1
LCD:JD9365
Framework: Arduino
Compiler: pioarduino
LVGL Version: LVGL v9.3
What do you want to achieve?
Rotate the screen 90 degrees. I tried everything, but before I changed the flush function, nothing worked at all; the screen was always vertical. Now the screen is upside down, but it still feels vertical.
What have you tried so far?
Tried the function:
lv_display_set_rotation(disp, LV_DISPLAY_ROTATION_90);
I tried the function and swapping the width (LCD_H_RES) and height(LCD_V_RES) when creating the display:
disp_drv = lv_display_create(LCD_H_RES, LCD_V_RES);

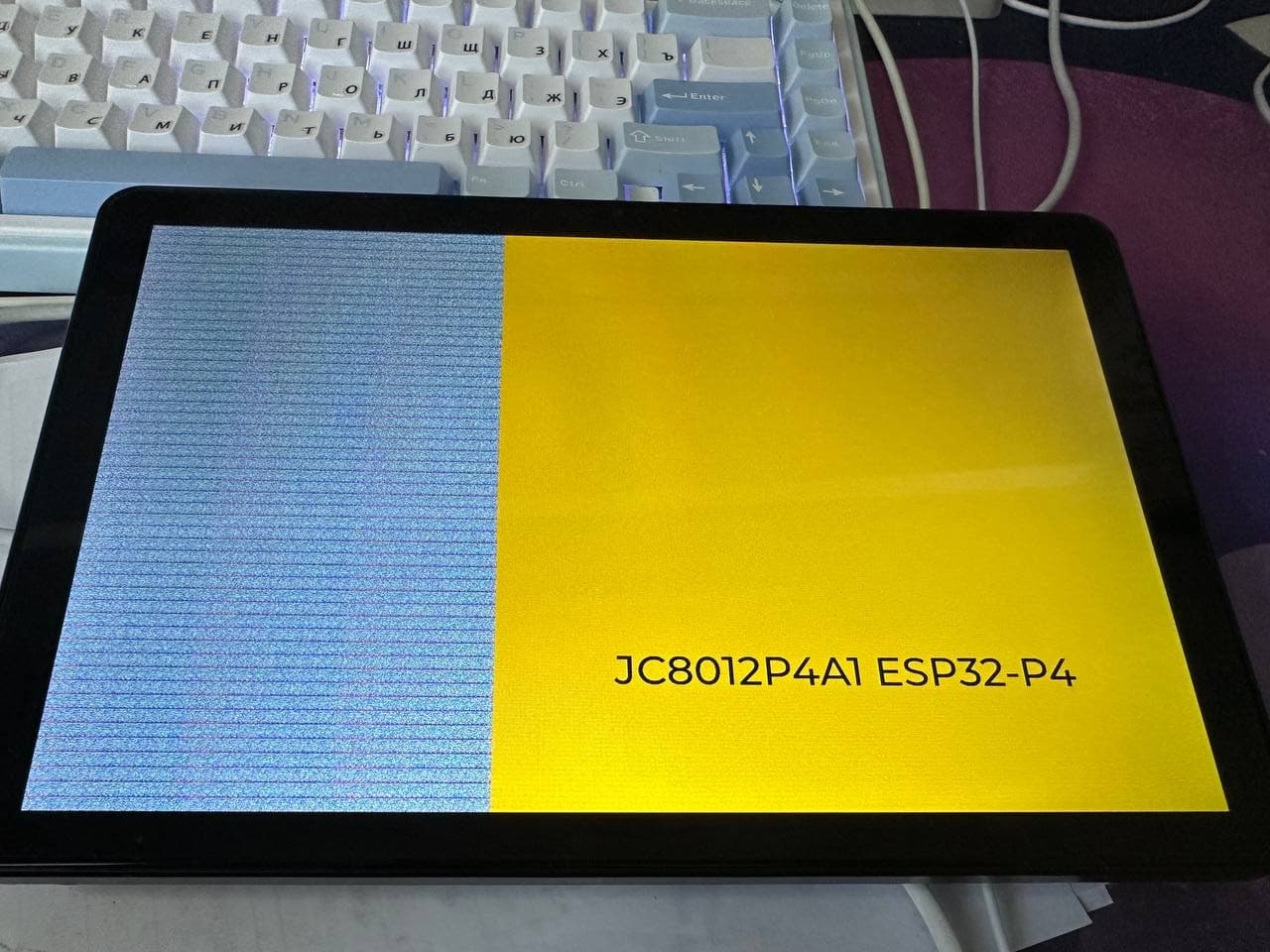

In both cases, I get artifacts.
I also tried playing with MADCTL, MV simply mirrors the screen and nothing more.
Code to reproduce
main.cpp
#pragma GCC push_options
#pragma GCC optimize("O3")
#include <Arduino.h>
#include "lvgl.h"
#include "pins_config.h"
#include "lcd/jd9365_lcd.h"
#include "touch/gsl3680_touch.h"
jd9365_lcd lcd = jd9365_lcd(LCD_RST);
gsl3680_touch touch = gsl3680_touch(TP_I2C_SDA, TP_I2C_SCL, TP_RST, TP_INT);
lv_display_t *disp_drv;
static uint32_t *buf;
static uint32_t *buf1;
static lv_obj_t *label;
void flush_cb(lv_display_t * disp, const lv_area_t * area, uint8_t * px_map)
{
const int32_t DISP_W = LCD_H_RES; // Ширина в 0°
const int32_t DISP_H = LCD_V_RES; // Высота в 0°
const lv_color_format_t COLOR_FORMAT = LV_COLOR_FORMAT_RGB565;
const uint32_t BYTES_PER_PIXEL = 2; // RGB565 = 2 байта на пиксель
lv_display_rotation_t rotation = LV_DISPLAY_ROTATION_90;
lv_area_t rotated_area;
if (rotation != LV_DISPLAY_ROTATION_0) {
rotated_area = *area;
lv_display_rotate_area(disp, &rotated_area);
uint32_t src_stride = lv_draw_buf_width_to_stride(lv_area_get_width(area), COLOR_FORMAT); // Исходный буфер
uint32_t dest_stride = lv_draw_buf_width_to_stride(lv_area_get_width(&rotated_area), COLOR_FORMAT);
static uint8_t *rotated_buf = nullptr;
static size_t rotated_buf_size = 0;
size_t needed_size = lv_area_get_width(&rotated_area) * lv_area_get_height(&rotated_area) * BYTES_PER_PIXEL;
if (rotated_buf == nullptr || rotated_buf_size < needed_size) {
if (rotated_buf) free(rotated_buf);
rotated_buf = (uint8_t *)heap_caps_malloc(needed_size, MALLOC_CAP_SPIRAM);
rotated_buf_size = needed_size;
assert(rotated_buf);
}
int32_t src_w = lv_area_get_width(area);
int32_t src_h = lv_area_get_height(area);
lv_draw_sw_rotate(px_map, rotated_buf, src_w, src_h, src_stride, dest_stride, rotation, COLOR_FORMAT);
area = &rotated_area;
px_map = rotated_buf;
}
lcd.lcd_draw_bitmap(area->x1, area->y1, area->x2 + 1, area->y2 + 1, px_map);
lv_display_flush_ready(disp);
}
void my_touchpad_read(lv_indev_t *indev_driver, lv_indev_data_t *data)
{
bool touched;
uint16_t touchX, touchY;
touched = touch.getTouch(&touchX, &touchY);
if (!touched)
{
data->state = LV_INDEV_STATE_REL;
}
else
{
data->state = LV_INDEV_STATE_PR;
data->point.x = touchX;
data->point.y = touchY;
Serial.printf("x=%d,y=%d \r\n", touchX, touchY);
}
}
void setup()
{
Serial.begin(115200);
Serial.println("ESP32P4 MIPI DSI LVGL");
lcd.begin();
//lcd.rotate(1);
touch.begin();
lv_init();
uint32_t buffer_size = LCD_H_RES * LCD_V_RES * 2;
buf = (uint32_t *)heap_caps_malloc(buffer_size, MALLOC_CAP_SPIRAM);
buf1 = (uint32_t *)heap_caps_malloc(buffer_size, MALLOC_CAP_SPIRAM);
assert(buf);
assert(buf1);
disp_drv = lv_display_create(LCD_H_RES, LCD_V_RES);
lv_display_set_flush_cb(disp_drv, flush_cb);
lv_display_set_buffers(disp_drv, buf, buf1, buffer_size * sizeof(uint32_t), LV_DISPLAY_RENDER_MODE_FULL);
lv_indev_t *indev = lv_indev_create();
lv_indev_set_type(indev, LV_INDEV_TYPE_POINTER);
lv_indev_set_read_cb(indev, my_touchpad_read);
constexpr int BIT_DEPTH = 14;
constexpr int MAX_PWM_VAL = 1 << BIT_DEPTH;
if (!ledcAttachChannel(LCD_LED, 1220, BIT_DEPTH, 0))
{
log_e("Error setting ledc pin %i. system halted", LCD_LED);
while (1)
delay(1000);
}
if (!ledcWrite(LCD_LED, MAX_PWM_VAL >> 0))
{
log_e("Error setting ledc value. system halted");
while (1)
delay(1000);
}
lv_obj_set_style_bg_color(lv_scr_act(), lv_palette_main(LV_PALETTE_AMBER), 0);
// create a style
static lv_style_t style_big;
lv_style_init(&style_big);
lv_style_set_text_font(&style_big, &lv_font_montserrat_48);
// create label
label = lv_label_create(lv_scr_act());
// apply style to label
lv_obj_add_style(label, &style_big, 0);
lv_label_set_text(label, "Hello World!");
lv_obj_center(label);
}
void loop()
{
lv_timer_handler();
lv_indev_t *indev = lv_indev_get_next(nullptr);
if (indev && lv_indev_get_type(indev) == LV_INDEV_TYPE_POINTER)
{
lv_point_t point;
lv_indev_get_point(indev, &point); // gets current or last point
lv_indev_state_t state = lv_indev_get_state(indev);
static lv_point_t last = {-1, -1};
static bool last_pressed = false;
if (state == LV_INDEV_STATE_PRESSED &&
(point.x != last.x || point.y != last.y || !last_pressed))
{
last = point;
last_pressed = true;
char buf[64];
snprintf(buf, sizeof(buf), "Touch: %d, %d", point.x, point.y);
lv_label_set_text(label, buf);
lv_obj_align(label, LV_ALIGN_CENTER, 0, 0);
lv_obj_set_style_text_color(label, lv_palette_main(LV_PALETTE_BLUE), 0);
}
else if (state == LV_INDEV_STATE_RELEASED && last_pressed)
{
last_pressed = false;
lv_label_set_text(label, "JC8012P4A1 ESP32-P4");
lv_obj_align(label, LV_ALIGN_CENTER, 0, 0);
lv_obj_set_style_text_color(label, lv_palette_main(LV_PALETTE_NONE), 0);
}
}
delay(5);
lv_tick_inc(5);
}
