Mirrored, Distorted & Partial Image on ST7796 TFT with Pi Pico 2 (RP2350)

Get started
1

Hi There! I am trying to get my LVGL/Display project setup and have some problems while doing so. Therefore I am kindly asking for help.

Description

I am trying to get an ST7796 based (320x480) TFT Display to work with a Pi Pico 2 (RP2350) via SPI. The resulting on-screen image is a) distorted and b) mirrored and c) only rendered partially. Please see the photos below.

As far as I understand my display controllers should support hardware rotation via setting the corresponding bits in the MADCTL register.

What MCU/Processor/Board and compiler are you using?

  • Official Raspberry Pi Pico 2 with RP2350 MCU
  • ST7796 (and ST7789) TFT Display connected via SPI
  • Official Pi Pico SDK & Toolchain on Linux
  • LVGL included driver for the display

What do you want to achieve?

Properly setup LVGL on mentioned hardware. Specifically fix broken & partial rendering, rotation and mirroring issues.

What have you tried so far?

  • Checked and measured physical hardware connections and tested different Pi Pico 2’s and another display

  • Tried with another ST7789 TFT Display => shows the same issue

  • Tried this project => works!
    GitHub - aeroreyna/picopi_sdk_tft_st7796_example: A simple initial implementation of a simple driver for a tft screen with the st7796 controller. · GitHub

  • Customized the init command sequence (in lvgl/src/drivers/display/st7796/lv_st7796.c) with the one used in above project by ‘aeroreyna’ => no effect

  • Swapping HRES and VRES => Different behaviour observed (see photos and comments below)

  • Tried to set LV_LCD_FLAG_BGR, LV_LCD_FLAG_MIRROR_X, LV_LCD_FLAG_MIRROR_Y in lv_st7796_create() => no visible effect

  • Manually set MADCTL registers via direct SPI writes, my_lcd_send_cmd() function and hardcoding within LVGL driver* => no visible effect

    • *in lib/lvgl/src/drivers/display/lcd/lv_lcd_generic_mipi.c:
      init() | set_mirror() | set_swap_xy() | set_rotation()

  • Additionally called lv_lcd_generic_mipi_set_address_mode() with all possible combinations of params => no visible effect

  • Calling lv_display_set_rotation() with 0, 90, 180, 270 degrees. 0&180 and 90&270 lead to different images (see photos below)

  • Tried all three rendering modes => no effect

  • Tried different buffer sizes (for PARTIAL mode) and allocation on stack and/or heap => no difference

  • Manually re-setting resolution via lv_display_set_physical_resolution() and lv_display_set_resolution()

Code to reproduce

// General includes
#include <pico/time.h>
#include <pico/types.h>
#include <src/display/lv_display.h>
#include <src/drivers/display/lcd/lv_lcd_generic_mipi.h>
#include <stdbool.h>
#include <stdint.h>
#include <stdio.h>
#include "hardware/gpio.h"
#include "hardware/spi.h"
#include "lib/lvgl/lvgl.h"

#define TFT_HOR_RES 320
#define TFT_VER_RES 480
#define TFT_SPI_MOSI_GPIO 11
#define TFT_SPI_MISO_GPIO 12
#define TFT_SPI_CS_GPIO 13
#define TFT_SPI_SCK_GPIO 10
#define TFT_DC_GPIO 18
#define TFT_LED_GPIO 17
#define TFT_RESET_GPIO 16

// Size of lvgl pixelbuffer for full mode
#define my_pixelbuffer_size (TFT_HOR_RES * TFT_VER_RES * 2)

// MCUs SPI interface
spi_inst_t* my_spi_tft = spi1;


// Forward Declarations
uint32_t my_ms_since_boot();
void my_lvgl_flush_cb(lv_display_t* _display, const lv_area_t* _area, uint8_t* _px_map);
void my_lcd_send_cmd(lv_display_t *disp, const uint8_t *cmd, size_t cmd_size, const uint8_t *param, size_t param_size);
void my_lcd_send_color(lv_display_t *disp, const uint8_t *cmd, size_t cmd_size, uint8_t *param, size_t param_size);


int main(void)
{
	/* General Init */

	stdio_init_all();
	printf("\nTFT Display Test with LVGL\n");


	/* Init SPI */

	uint volatile brate = spi_init(my_spi_tft, 24 * 1000 * 1000);
	//spi_set_format(my_spi_tft, 8, SPI_CPOL_0, SPI_CPHA_0, SPI_MSB_FIRST);

	gpio_set_function(TFT_SPI_SCK_GPIO, GPIO_FUNC_SPI);
	gpio_set_function(TFT_SPI_MOSI_GPIO, GPIO_FUNC_SPI);
	gpio_set_function(TFT_SPI_MISO_GPIO, GPIO_FUNC_SPI);

	// SPI PIN: Cs: LOW->select | HIGH->deselect
	gpio_init(TFT_SPI_CS_GPIO);
	gpio_set_dir(TFT_SPI_CS_GPIO, GPIO_OUT);
	gpio_put(TFT_SPI_CS_GPIO, 1); // Default: Deselect

	// Other Pins: DC: LOW->CMD | HIGH->DATA
	gpio_init(TFT_DC_GPIO);
	gpio_set_dir(TFT_DC_GPIO, GPIO_OUT);
	gpio_put(TFT_DC_GPIO, 1);

	// Other Pins: Reset: LOW->INIT Reset | HIGH->Back to op
	gpio_init(TFT_RESET_GPIO);
	gpio_set_dir(TFT_RESET_GPIO, GPIO_OUT);
	gpio_put(TFT_RESET_GPIO, 1);

	// Other Pins: LED/Backlight
	gpio_init(TFT_LED_GPIO);
	gpio_set_dir(TFT_LED_GPIO, GPIO_OUT);
	gpio_put(TFT_LED_GPIO, 1);

	// Hardware Reset of TFT
	gpio_put(TFT_RESET_GPIO, 1);
	sleep_ms(5);
	gpio_put(TFT_RESET_GPIO, 0); // Hold LOW for reset
	sleep_ms(15);
	gpio_put(TFT_RESET_GPIO, 1); // Release reset
	sleep_ms(15);


	/* Init LVGL */

	lv_init();

	/* Set millisecond-based tick source for LVGL so that it can track time. */
	lv_tick_set_cb(my_ms_since_boot);

	// Remark: No combination of LV_LCD_FLAG_BGR, LV_LCD_FLAG_MIRROR_X,
	// Remark: LV_LCD_FLAG_MIRROR_Y have a visible effect
	lv_display_t* my_lvgl_display = lv_st7796_create(
			TFT_HOR_RES,
			TFT_VER_RES,
			LV_LCD_FLAG_NONE,
			my_lcd_send_cmd,
			my_lcd_send_color);

	//lv_display_set_physical_resolution(my_lvgl_display, TFT_VER_RES, TFT_HOR_RES);
	//lv_display_set_resolution(my_lvgl_display, TFT_VER_RES, TFT_HOR_RES);

	// Remark: Tried all combinations of params here, no visible effect
	//lv_lcd_generic_mipi_set_address_mode(my_lvgl_display, 0, 0, 1, 0);

	// Remark: (ROT90 & ROT270) Result in somewhat improved image
	// Remark: (ROT0 & ROT180) Result in more degraded image
	lv_display_set_rotation(my_lvgl_display, LV_DISPLAY_ROTATION_0);

	lv_display_set_color_format(my_lvgl_display, LV_COLOR_FORMAT_RGB565);

	// Remark: Dynamic allocation or partial rendering not working either
	static uint8_t my_pixelbuf[TFT_HOR_RES * TFT_VER_RES * 2];

	// Remark: None of the 3 render modes work
	lv_display_set_buffers(
		my_lvgl_display,
		&my_pixelbuf,
		NULL,
		my_pixelbuffer_size,
		LV_DISPLAY_RENDER_MODE_FULL
	);


	/* Draw test ui */

	lv_obj_t* label = lv_label_create(lv_screen_active());
	lv_label_set_text(label, "Test Label: F 3!");
	lv_obj_set_style_text_font(label, &lv_font_montserrat_30, 0);
	lv_obj_center(label);


	/* Main Loop */

	for (;;) {
		lv_timer_handler();
		sleep_ms(5);
	};

	return(0);
}


/*
	Send short command to the LCD.
*/
void my_lcd_send_cmd(lv_display_t* display, const uint8_t* cmd, size_t cmd_size, const uint8_t* param, size_t param_size)
{
	if (*cmd == 0x36) {
		printf("MADCTL: %d\n", *param);
	}

	// Select TFT on SPI & Set command mode
	asm volatile("nop \n nop \n nop");
	gpio_put(TFT_SPI_CS_GPIO, 0); // LOW -> select
	gpio_put(TFT_DC_GPIO, 0); // LOW -> command mode
	asm volatile("nop \n nop \n nop");

	// Write Command
	spi_write_blocking(my_spi_tft, cmd, 1);

	// Deselect TFT on SPI
	asm volatile("nop \n nop \n nop");
	gpio_put(TFT_SPI_CS_GPIO, 1);  // HIGH -> deselect
	asm volatile("nop \n nop \n nop");
}


/*
	Send large array of pixel data to the LCD controller.
*/
void my_lcd_send_color(lv_display_t* display, const uint8_t* cmd, size_t cmd_size, uint8_t* param, size_t param_size)
{
	lv_display_rotation_t rotation = lv_display_get_rotation(display);

	// Select TFT on SPI & Set command mode
	asm volatile("nop \n nop \n nop");
	gpio_put(TFT_SPI_CS_GPIO, 0); // LOW -> select
	gpio_put(TFT_DC_GPIO, 0); // LOW -> command mode
	asm volatile("nop \n nop \n nop");

	// Write Command
	spi_write_blocking(my_spi_tft, cmd, 1);

	// Set data mode
	asm volatile("nop \n nop \n nop");
	gpio_put(TFT_DC_GPIO, 1); // HIGH -> data mode
	asm volatile("nop \n nop \n nop");

	// Write Data
	spi_write_blocking(my_spi_tft, param, param_size);

	// Deselect TFT on SPI
	asm volatile("nop \n nop \n nop");
	gpio_put(TFT_SPI_CS_GPIO, 1); // HIGH -> deselect
	asm volatile("nop \n nop \n nop");

	// Inform LVGL of finished flush operation
	lv_display_flush_ready(display); // Notify LVGL that flush is complete
}


/*
	Return ms since MCU boot
*/
uint32_t my_ms_since_boot()
{
	uint32_t ms = to_ms_since_boot(get_absolute_time());
	return ms;
}

Screenshot and/or video

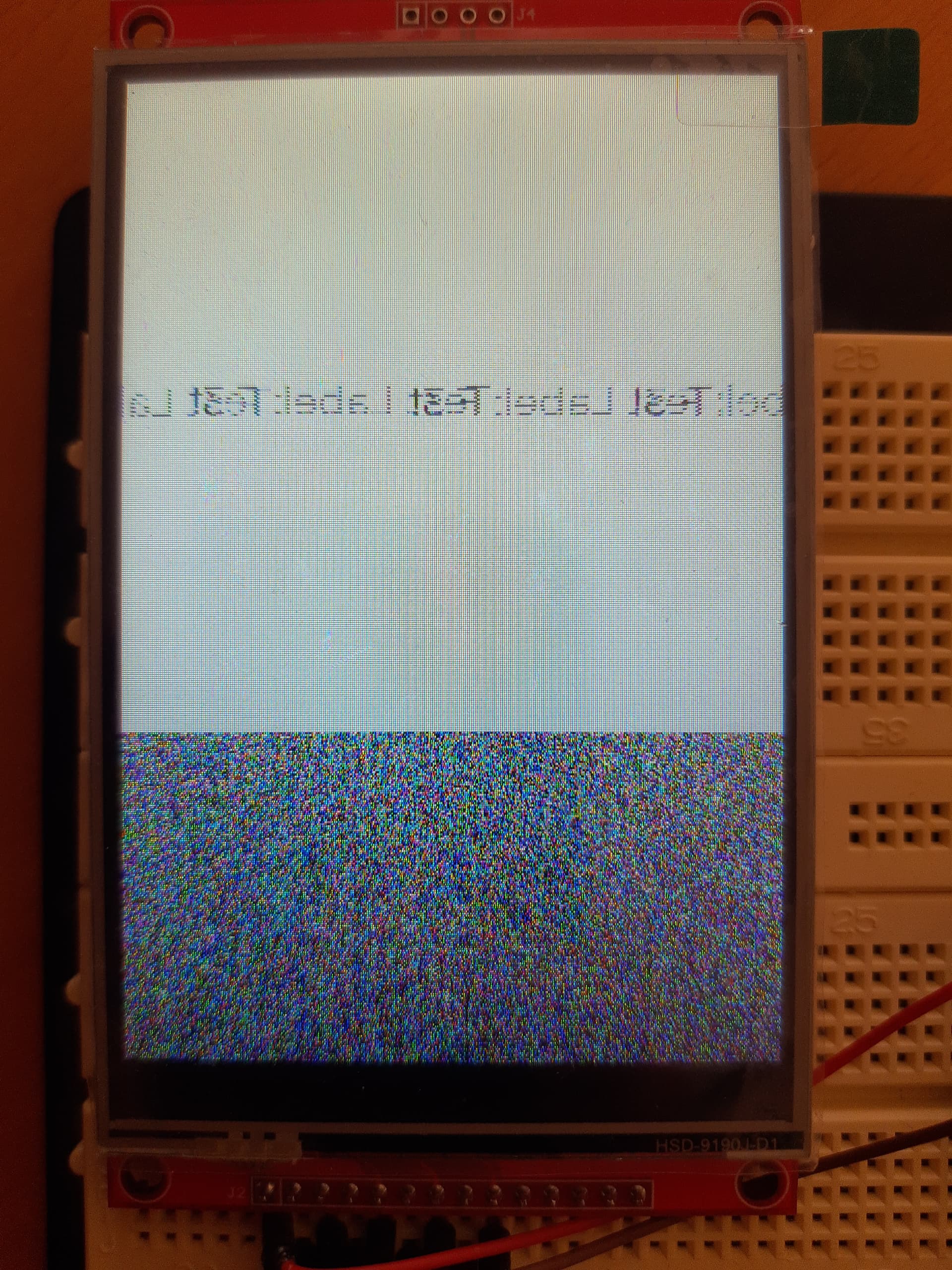

Picture of the issue with rotation set to 0 or 180 degrees (HRES=320, VRES=480):

ss7796_roation_0_or_180
ss7796_roation_0_or_1801920×2560 868 KB

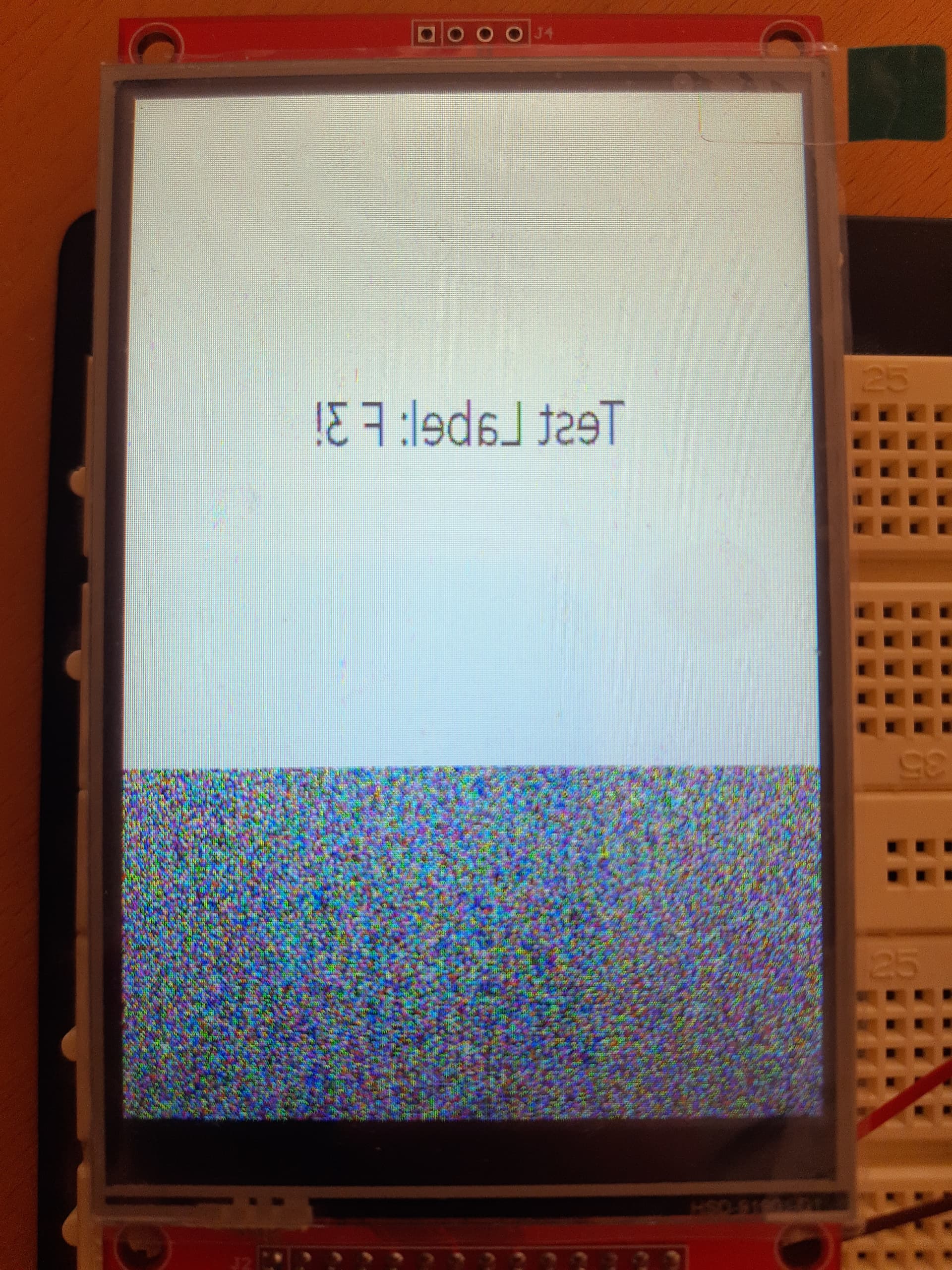

Picture of the issue with rotation set to 90 or 270 degrees (or HRES and VRES swapped manually). Note that the label is properly centered within the white-backgroud part of the display.:

ss7796_roation_90_or_270
ss7796_roation_90_or_2701920×2560 708 KB

  • With my “high-precision” ruler I “measured”, that the missing/non-rendered/noisy part is indeed 1/3 of the height of the display (=160px)
