Is there any problem with image scaling?

Anda · December 20, 2019, 10:41am

Description

LittlevGL version: v7.0.0
I want to scale the image, and the test found something wrong.

What MCU/Processor/Board and compiler are you using?

BLE MCU(ARM)

What do you experience?

After many tests, I found that there is a problem with the scaling of the picture type LV_IMG_CF_TRUE_COLOR, and the LV_IMG_CF_TRUE_COLOR_ALPHA can display normally.

What do you expect?

I expect the picture to scale properly(image_type: LV_IMG_CF_TRUE_COLOR).

Code to reproduce

Add a code snippet to reproduce the issue in the simulator. It should contain only the relevant code which can be compiled. Bug reports without code snippets or with erroneous code snippets will not be reviewed.

	lv_obj_t *screen = lv_scr_act();
    lv_obj_t *img_origin = lv_img_create(screen, NULL);
    lv_img_set_src(img_origin, &BIN_IMAGE_2);
	lv_obj_set_pos(img_origin, 10, 10);

	lv_obj_t *img_zoom = lv_img_create(screen, NULL);
    lv_img_set_src(img_zoom, &BIN_IMAGE_2);
	lv_img_set_antialias(img_zoom, true);
	lv_img_set_auto_size(img_zoom, true);
	lv_img_set_zoom(img_zoom, 256 / 2);
	lv_obj_align(img_zoom, img_origin, LV_ALIGN_OUT_RIGHT_TOP, 20, 30);

Screenshot and/or video

If possible, add screenshots and/or videos about the current issue.

@kisvegabor

Looking forward to your reply.

Best Regards.

embeddedt · December 20, 2019, 1:41pm

Please send a copy of BIN_IMAGE_2 as well.

Anda · December 20, 2019, 1:51pm

OK!
BIN_IMAGE_2.c (1.9 MB)
news_tu_1

kisvegabor · December 21, 2019, 9:12pm

Hi,

I’ve fixed it here:

Anda · December 23, 2019, 2:12am

Thank you for your reply.
After the update, the effect is much better, but there are still some problems.

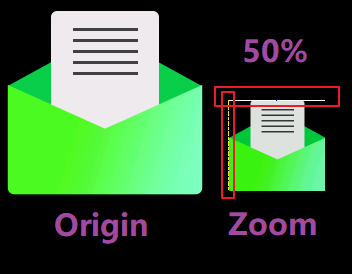

The test found that when the picture is zoomed out, it seems that the graphics have some changes (from Right, Bottom edge position). Is there any way to optimize this?

@kisvegabor

kisvegabor · December 23, 2019, 7:07am

Please attach the images and your test code.

Anda · December 23, 2019, 7:08am

OK, please wait a moment.

Anda · December 23, 2019, 7:51am

[ Attach Files ]
test_code.zip (105.8 KB)

Regarding the LV_IMG_CF_TRUE_COLOR image to achieve transparent display,
I made some modifications as follows:
@ src / lv_draw / lv_draw_blend.c -> map_normal (…)

'[ original code ]' >>
memcpy(&disp_buf_tmp[draw_area->x1], map_buf_tmp, draw_area_w * sizeof(lv_color_t));
'[ modified code ]' >>
for (int index = 0; index < draw_area_w; index ++) {
     lv_color_t color = map_buf_tmp[index];
     int brightness   = lv_color_brightness(color);

     if (brightness < 10) {
         continue;
     } else if (brightness < 60) {
         color = lv_color_mix(color, disp_buf_tmp[draw_area->x1 + index], brightness);
     }

     disp_buf_tmp[draw_area->x1 + index] = color;
}

@kisvegabor

embeddedt · December 23, 2019, 6:13pm

My guess is that it’s caused by the use of a very simple scaling algorithm. It’s probably not going to work well with extreme downsizing of images.

Anda · December 24, 2019, 2:44am

I think it can be optimized better, because I achieved this effect with a simple scaling algorithm.

public Bitmap IMG_Zoom(Bitmap img, int w, int h)
{
    Bitmap IMG = new Bitmap(w, h);

    int w0 = img.Width;
    int h0 = img.Height;

    int w1 = w;
    int h1 = h;

    float fw = ((float)w0 / (float)w1);
    float fh = ((float)h0 / (float)h1);

    int y1, y2, x1, x2, x0, y0;
    float fx1, fx2, fy1, fy2;
    for (int y = 0; y < h1; y++)
    {
        y0 = (int)(y * fh);
        y1 = y0;
        if (y1 == h0 - 1) y2 = y1;
        else y2 = y1 + 1;

        fx1 = y1 - y0;
        fx2 = 1.0f - fx1;

        fy1 = y1 - y0;
        fy2 = 1.0f - fy1;

        float s1 = (fx1 * fy1);
        float s2 = (fx2 * fy1);
        float s3 = (fx2 * fy2);
        float s4 = (fx1 * fy2);

        for (int x = 0; x < w1; x++)
        {
            x0 = (int)(x * fw);
            x1 = x0;
            if (x1 == w0 - 1) x2 = x1;
            else x2 = x1 + 1;

            Color c1, c2, c3, c4;
            c1 = img.GetPixel(x1, y1);
            c2 = img.GetPixel(x2, y1);
            c3 = img.GetPixel(x1, y2);
            c4 = img.GetPixel(x2, y2);
            byte r, g, b;
            r = (byte)((byte)(c1.R * s3) + (byte)(c2.R * s4) + (byte)(c3.R * s2) + (byte)(c4.R * s1));
            g = (byte)((byte)(c1.G * s3) + (byte)(c2.G * s4) + (byte)(c3.G * s2) + (byte)(c4.G * s1));
            b = (byte)((byte)(c1.B * s3) + (byte)(c2.B * s4) + (byte)(c3.B * s2) + (byte)(c4.B * s1));

            if (x >= IMG.Width) break;
            if (y >= IMG.Height) break;

            IMG.SetPixel(x, y, Color.FromArgb(r, g, b));
        }
    }

    return IMG;
}

Anda · December 24, 2019, 4:03am

Looking forward to your optimization.

Best Regards.

embeddedt · December 24, 2019, 9:48pm

Where did you retrieve this code from? Did you create it by hand?

Anda · December 25, 2019, 2:39am

This is an image scaling program I tested with Visual Studio C# (Winform).

Anda · December 26, 2019, 6:47am

Hello!
Is there any plan to consider optimization?

embeddedt · December 26, 2019, 4:49pm

Please be patient; @kisvegabor will respond when he gets a chance.

Anda · December 27, 2019, 2:14am

Okay, very looking forward.

Anda · December 30, 2019, 11:20am

Hello! Any progress?
@kisvegabor

embeddedt · December 30, 2019, 4:12pm

He is working on it; unfortunately he has been busy with other things over the last few days so he hasn’t gotten a chance to reply.

Anda · December 31, 2019, 2:29am

Okay, I see.
Thanks in advance.

Anda · December 31, 2019, 12:31pm

Hello!
I have now modified lv_img_draw_core (…). From the perspective of the running effect, the effect has been significantly improved.
