How to use lvgl to implement picture-in-picture feature

[realprocrastinator]

Hi, I’d like to use lvgl to implement a video chatting app for a smartwatch. In Whatsapp, you can see a picture-in-picture displaying yourself beside the remote side when you are doing a video call. But I’m not sure how to implement this feature with lvgl? I suppose we need a small video container layer be on top of a big video container? Any examples would be helpful. Thanks in advance!

[fbiego]

Make you PIP container draggable similar to this example.

Make an object draggable - Base Widget (lv_obj) | LVGL Open

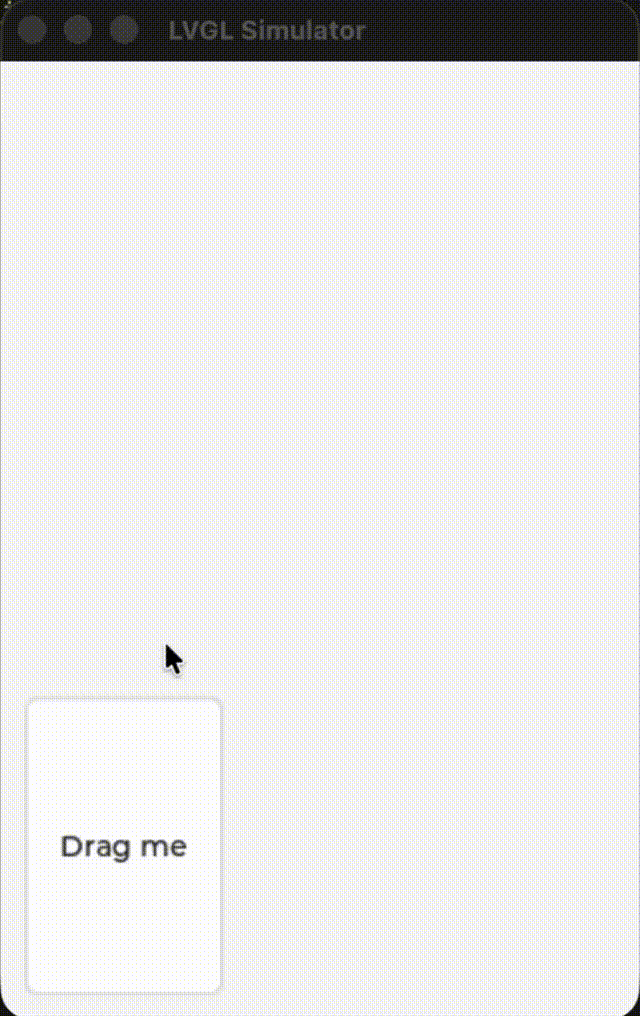

You can also add snap to corners with animations with some code and animations

#define PIP_EDGE_MARGIN 12
#define PIP_SNAP_DURATION_MS 250

static void snap_x_anim_cb(void *obj, int32_t value) {
  lv_obj_set_x((lv_obj_t *)obj, value);
}

static void snap_y_anim_cb(void *obj, int32_t value) {
  lv_obj_set_y((lv_obj_t *)obj, value);
}

static void animate_to_position(lv_obj_t *obj, int32_t x, int32_t y) {
  lv_anim_delete(obj, snap_x_anim_cb);
  lv_anim_delete(obj, snap_y_anim_cb);

  lv_anim_t anim;

  lv_anim_init(&anim);
  lv_anim_set_var(&anim, obj);
  lv_anim_set_values(&anim, lv_obj_get_x_aligned(obj), x);
  lv_anim_set_duration(&anim, PIP_SNAP_DURATION_MS);
  lv_anim_set_exec_cb(&anim, snap_x_anim_cb);
  lv_anim_set_path_cb(&anim, lv_anim_path_ease_out);
  lv_anim_start(&anim);

  lv_anim_init(&anim);
  lv_anim_set_var(&anim, obj);
  lv_anim_set_values(&anim, lv_obj_get_y_aligned(obj), y);
  lv_anim_set_duration(&anim, PIP_SNAP_DURATION_MS);
  lv_anim_set_exec_cb(&anim, snap_y_anim_cb);
  lv_anim_set_path_cb(&anim, lv_anim_path_ease_out);
  lv_anim_start(&anim);
}

static int32_t clamp_value(int32_t value, int32_t min, int32_t max) {
  if (value < min)
    return min;
  if (value > max)
    return max;
  return value;
}

static void drag_event_handler(lv_event_t *e) {
  lv_event_code_t code = lv_event_get_code(e);
  lv_obj_t *obj = lv_event_get_current_target_obj(e);
  lv_obj_t *parent = lv_obj_get_parent(obj);

  int32_t obj_w = lv_obj_get_width(obj);
  int32_t obj_h = lv_obj_get_height(obj);
  int32_t parent_w = lv_obj_get_content_width(parent);
  int32_t parent_h = lv_obj_get_content_height(parent);

  int32_t min_x = PIP_EDGE_MARGIN;
  int32_t min_y = PIP_EDGE_MARGIN;
  int32_t max_x = parent_w - obj_w - PIP_EDGE_MARGIN;
  int32_t max_y = parent_h - obj_h - PIP_EDGE_MARGIN;

  if (max_x < min_x)
    max_x = min_x;
  if (max_y < min_y)
    max_y = min_y;

  if (code == LV_EVENT_PRESSING) {
    lv_indev_t *indev = lv_indev_active();
    if (indev == NULL)
      return;

    /* Stop snapping if the object is grabbed again. */
    lv_anim_delete(obj, snap_x_anim_cb);
    lv_anim_delete(obj, snap_y_anim_cb);

    lv_point_t vect;
    lv_indev_get_vect(indev, &vect);

    int32_t x = lv_obj_get_x_aligned(obj) + vect.x;
    int32_t y = lv_obj_get_y_aligned(obj) + vect.y;

    x = clamp_value(x, min_x, max_x);
    y = clamp_value(y, min_y, max_y);

    lv_obj_set_pos(obj, x, y);
  } else if (code == LV_EVENT_RELEASED) {
    int32_t center_x = lv_obj_get_x_aligned(obj) + obj_w / 2;
    int32_t center_y = lv_obj_get_y_aligned(obj) + obj_h / 2;

    int32_t target_x = center_x < parent_w / 2 ? min_x : max_x;

    int32_t target_y = center_y < parent_h / 2 ? min_y : max_y;

    animate_to_position(obj, target_x, target_y);
  }
}

void lv_example_obj_draggable(void) {
  lv_obj_t *obj = lv_obj_create(lv_screen_active());

  lv_obj_set_size(obj, 100, 150);
  lv_obj_set_pos(obj, PIP_EDGE_MARGIN, PIP_EDGE_MARGIN);
  lv_obj_add_event_cb(obj, drag_event_handler, LV_EVENT_PRESSING, NULL);
  lv_obj_add_event_cb(obj, drag_event_handler, LV_EVENT_RELEASED, NULL);

  lv_obj_t *label = lv_label_create(obj);
  lv_label_set_text(label, "Drag me");
  lv_obj_center(label);
}

// make the parent non-scrollable
lv_obj_set_flag(lv_scr_act(), LV_OBJ_FLAG_SCROLLABLE, false);
lv_example_obj_draggable();
