Description
What MCU/Processor/Board and compiler are you using?
LVGL simulator, VS Code on Linux, Platformio, emulator_64bits
What LVGL version are you using?
LVGL v9
What do you want to achieve?

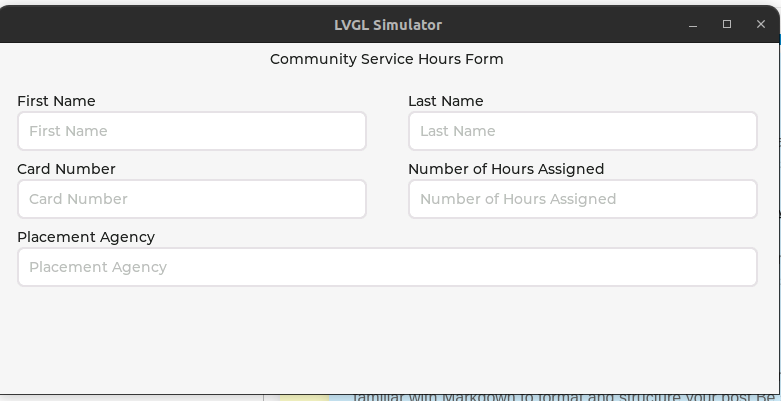

I want to set the x, y position of the text inside the labels (e.g. the “First Name” label) to fix a distance beween the label and the textarea on its bottom side. I want to achieve this for all the labels in the grid.
I know there are already the lv_obj_set_grid_cell() functions and I’m using them, however I can’t understand how to manually set the labels positions, with margins in pixels in the cell.
What have you tried so far?
I tried to use the llv_obj_set_y() and lv_obj_set_x() and lv_obj_set_pos() on the p_label object but it still remains in the same position.
Code to reproduce
This is my current code.
#include "BasicLayout.h"
#include "lvgl.h"
#include <stdio.h>
#include <stdint.h>
// We want to buid a generic form where the user insert data.
// We won't use a flexbox because the upper part will be different from the
// bottom part, so a grid will fit better for this.
//
void
layout_demo1 (void)
{
// We use a fixed size because we want some margin from the borders.
//
static int32_t col_dsc[] = {350, 350, LV_GRID_TEMPLATE_LAST};
static int32_t row_dsc[] = {32, 24, 24, 24, 24, 24, 24,
LV_GRID_TEMPLATE_LAST};
lv_obj_t * p_screen(lv_screen_active());
lv_obj_set_grid_dsc_array(p_screen, col_dsc, row_dsc);
// This won't make so much difference because we take all the available
// screen.
//
lv_obj_set_grid_align(p_screen, LV_GRID_ALIGN_SPACE_AROUND,
LV_GRID_ALIGN_START);
// Element on the top.
//
lv_obj_t * p_label(lv_label_create(p_screen));
lv_label_set_text(p_label, "Community Service Hours Form");
lv_obj_set_grid_cell(p_label, LV_GRID_ALIGN_CENTER, 0, 2,
LV_GRID_ALIGN_CENTER, 0, 1);
// First form line.
//
p_label = lv_label_create(p_screen);
lv_label_set_text(p_label, "First Name");
lv_obj_set_grid_cell(p_label, LV_GRID_ALIGN_START, 0, 1,
LV_GRID_ALIGN_END, 1, 1);
p_label = lv_label_create(p_screen);
lv_label_set_text(p_label, "Last Name");
lv_obj_set_grid_cell(p_label, LV_GRID_ALIGN_START, 1, 1,
LV_GRID_ALIGN_END, 1, 1);
// Second form line.
//
lv_obj_t * p_first_name_txt(lv_textarea_create(p_screen));
lv_textarea_set_one_line(p_first_name_txt, true);
lv_textarea_set_placeholder_text(p_first_name_txt, "First Name");
// The stretch permits to take the entire column.
//
lv_obj_set_grid_cell(p_first_name_txt, LV_GRID_ALIGN_STRETCH, 0, 1,
LV_GRID_ALIGN_CENTER, 2, 1);
lv_obj_t * p_last_name_txt(lv_textarea_create(p_screen));
lv_textarea_set_one_line(p_last_name_txt, true);
lv_textarea_set_placeholder_text(p_last_name_txt, "Last Name");
lv_obj_set_grid_cell(p_last_name_txt, LV_GRID_ALIGN_STRETCH, 1, 1,
LV_GRID_ALIGN_CENTER, 2, 1);
// Third form line.
//
p_label = lv_label_create(p_screen);
lv_label_set_text(p_label, "Card Number");
lv_obj_set_grid_cell(p_label, LV_GRID_ALIGN_START, 0, 1,
LV_GRID_ALIGN_END, 3, 1);
p_label = lv_label_create(p_screen);
lv_label_set_text(p_label, "Number of Hours Assigned");
lv_obj_set_grid_cell(p_label, LV_GRID_ALIGN_START, 1, 1,
LV_GRID_ALIGN_END, 3, 1);
// Fourth form line.
//
lv_obj_t * p_card_num_txt(lv_textarea_create(p_screen));
lv_textarea_set_one_line(p_card_num_txt, true);
lv_textarea_set_placeholder_text(p_card_num_txt, "Card Number");
lv_obj_set_grid_cell(p_card_num_txt, LV_GRID_ALIGN_STRETCH, 0, 1,
LV_GRID_ALIGN_CENTER, 4, 1);
lv_obj_t * p_hours_assigned_txt(lv_textarea_create(p_screen));
lv_textarea_set_one_line(p_hours_assigned_txt, true);
lv_textarea_set_placeholder_text(p_hours_assigned_txt,
"Number of Hours Assigned");
lv_obj_set_grid_cell(p_hours_assigned_txt, LV_GRID_ALIGN_STRETCH, 1, 1,
LV_GRID_ALIGN_CENTER, 4, 1);
// Fifth form line.
//
p_label = lv_label_create(p_screen);
lv_label_set_text(p_label, "Placement Agency");
lv_obj_set_grid_cell(p_label, LV_GRID_ALIGN_START, 0, 2,
LV_GRID_ALIGN_END, 5, 1);
// Sixth form line.
//
lv_obj_t * p_placement_ag_txt(lv_textarea_create(p_screen));
lv_textarea_set_one_line(p_placement_ag_txt, true);
lv_textarea_set_placeholder_text(p_placement_ag_txt, "Placement Agency");
// We need a stretch on the column to be able to take the entire two cols.
//
lv_obj_set_grid_cell(p_placement_ag_txt, LV_GRID_ALIGN_STRETCH, 0, 2,
LV_GRID_ALIGN_CENTER, 6, 1);
} /* layout_demo1() */
