Hi, I am using the EVE GPU renderer to draw the UI on an FT813 display. So far everything has been working correctly, but I am running into an issue: when I try to draw a menu on top of other items, it does not render properly. I read the documentation especially the limitations section and noticed that layers are not supported. The same code works fine on Window Codeblocks. Can someone please confirm whether this issue is directly related to that limitation mentioned in the documentation or am I doing something wrong? If yes, could someone guide me on how to resolve it? I would also like to contribute to the driver to add layer support using the EVE GPU renderer.
Code to reproduce
lv_obj_t* menuExtContainer;
lv_obj_t* mainAreaContainer;
#define EXT_COLS 2
#define EXT_CELL_W 250
#define EXT_CELL_H 50
#define EXT_COL_GAP 50
#define EXT_ROW_GAP 10
#define EXT_OUTER_PAD 5
#define COLS 4
#define ROWS 7
void CreateMainAreaLayout()
{
if(mainAreaContainer == NULL)
{
mainAreaContainer = lv_obj_create(lv_scr_act());
}
lv_obj_clean(mainAreaContainer);
lv_obj_remove_style_all(mainAreaContainer);
lv_obj_set_style_bg_color(mainAreaContainer, lv_palette_main(LV_PALETTE_CYAN), 0);
lv_obj_set_style_bg_opa(mainAreaContainer, LV_OPA_20, 0);
lv_obj_set_size(mainAreaContainer, LV_PCT(100), 420);
lv_obj_align(mainAreaContainer, LV_ALIGN_TOP_MID, 0, 0 );
lv_obj_set_style_radius(mainAreaContainer, 0, 0);
lv_obj_set_style_border_width(mainAreaContainer, 2, 0);
lv_obj_set_style_border_color(mainAreaContainer, lv_color_black(), 0);
lv_obj_set_style_pad_all(mainAreaContainer, 1, 0);
static lv_coord_t col_dsc[10];
static lv_coord_t row_dsc[10];
for(int i = 0; i < COLS; i++)
{
col_dsc[i] = LV_GRID_FR(1);
}
col_dsc[COLS] = LV_GRID_TEMPLATE_LAST;
for(uint8_t i = 0; i < ROWS; i++)
{
row_dsc[i] = LV_GRID_FR(1);
}
row_dsc[ROWS] = LV_GRID_TEMPLATE_LAST;
lv_obj_set_style_grid_column_dsc_array(mainAreaContainer, col_dsc, 0);
lv_obj_set_style_grid_row_dsc_array(mainAreaContainer, row_dsc, 0);
lv_obj_set_style_pad_column(mainAreaContainer, 20, 0);
lv_obj_set_style_pad_row(mainAreaContainer, 5, 0);
lv_obj_set_layout(mainAreaContainer, LV_LAYOUT_GRID);
lv_obj_set_scroll_dir(mainAreaContainer, LV_DIR_NONE);
lv_obj_set_scrollbar_mode(mainAreaContainer, LV_SCROLLBAR_MODE_OFF);
lv_obj_t * label;
lv_obj_t * obj;
uint8_t i;
for(i = 0; i < COLS*ROWS; i++) {
uint8_t col = i % COLS;
uint8_t row = i / COLS;
obj = lv_button_create(mainAreaContainer);
lv_obj_set_grid_cell(obj, LV_GRID_ALIGN_STRETCH, col, 1,
LV_GRID_ALIGN_STRETCH, row, 1);
label = lv_label_create(obj);
lv_label_set_text_fmt(label, "c%d, r%d", col, row);
lv_obj_center(label);
}
}
static void create_extended_menu(void)
{
int num_of_buttons = 12;
menuExtContainer = lv_obj_create(lv_scr_act());
lv_obj_set_style_radius(menuExtContainer, 0, 0);
lv_obj_set_style_border_width(menuExtContainer, 1, 0);
lv_obj_set_style_border_color(menuExtContainer, lv_color_black(), 0);
lv_obj_set_style_bg_color(menuExtContainer, lv_palette_main(LV_PALETTE_GREY), 0);
lv_obj_align(menuExtContainer, LV_ALIGN_BOTTOM_MID, 0, 0);
lv_obj_set_scrollbar_mode(menuExtContainer, LV_SCROLLBAR_MODE_OFF);
lv_obj_remove_flag(menuExtContainer, LV_OBJ_FLAG_GESTURE_BUBBLE);
const uint32_t rows = (num_of_buttons + EXT_COLS - 1) / EXT_COLS;
const int32_t grid_w = EXT_COLS * EXT_CELL_W + (EXT_COLS - 1) * EXT_COL_GAP;
const int32_t grid_h = rows * EXT_CELL_H + (rows - 1) * EXT_ROW_GAP;
const int32_t total_h = grid_h + 2 * EXT_OUTER_PAD;
static int32_t col_dsc[EXT_COLS + 1];
static int32_t row_dsc[9];
for (uint32_t i = 0; i < EXT_COLS; i++)
{
col_dsc[i] = EXT_CELL_W;
}
col_dsc[EXT_COLS] = LV_GRID_TEMPLATE_LAST;
for (uint32_t i = 0; i < rows; i++)
{
row_dsc[i] = EXT_CELL_H;
}
row_dsc[rows] = LV_GRID_TEMPLATE_LAST;
lv_obj_set_layout(menuExtContainer, LV_LAYOUT_GRID);
lv_obj_set_style_grid_column_dsc_array(menuExtContainer, col_dsc, 0);
lv_obj_set_style_grid_row_dsc_array(menuExtContainer, row_dsc, 0);
lv_obj_set_style_pad_column(menuExtContainer, EXT_COL_GAP, 0);
lv_obj_set_style_pad_row(menuExtContainer, EXT_ROW_GAP, 0);
int32_t scr_w = lv_disp_get_hor_res(NULL);
int32_t left_pad = (scr_w - grid_w) / 2;
if (left_pad < 0)
{
left_pad = 0;
}
lv_obj_set_style_pad_left(menuExtContainer, left_pad, 0);
lv_obj_set_style_pad_right(menuExtContainer, left_pad, 0);
lv_obj_set_style_pad_top(menuExtContainer, EXT_OUTER_PAD, 0);
lv_obj_set_style_pad_bottom(menuExtContainer, EXT_OUTER_PAD, 0);
lv_obj_set_size(menuExtContainer, LV_PCT(100), total_h);
lv_obj_set_scroll_dir(menuExtContainer, LV_DIR_NONE);
lv_obj_set_scrollbar_mode(menuExtContainer, LV_SCROLLBAR_MODE_OFF);
for (int32_t i = 0; i < num_of_buttons ; i++)
{
uint32_t col = i % EXT_COLS;
uint32_t row = i / EXT_COLS;
lv_obj_t * btn = lv_btn_create(menuExtContainer);
lv_obj_set_grid_cell(btn,
LV_GRID_ALIGN_STRETCH, col, 1,
LV_GRID_ALIGN_STRETCH, row, 1);
lv_obj_set_style_bg_color(btn, lv_palette_darken(LV_PALETTE_BLUE, 4), 0);
lv_obj_set_style_text_font(btn, &lv_font_montserrat_20, 0);
lv_obj_t * lbl = lv_label_create(btn);
lv_label_set_text_fmt(lbl, "c%d, r%d", col, row);
lv_obj_center(lbl);
}
}
int APIENTRY WinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPSTR szCmdLine, int nCmdShow)
{
// Initialize LVGL
lv_init();
// Create display window
lv_display_t* display = lv_windows_create_display(title, 800, 480, 100, FALSE, FALSE);
lv_windows_acquire_pointer_indev(display);
CreateMainAreaLayout();
create_extended_menu();
while(1) {
lv_task_handler();
usleep(500);
}
return 0;
}
Screenshot and/or video

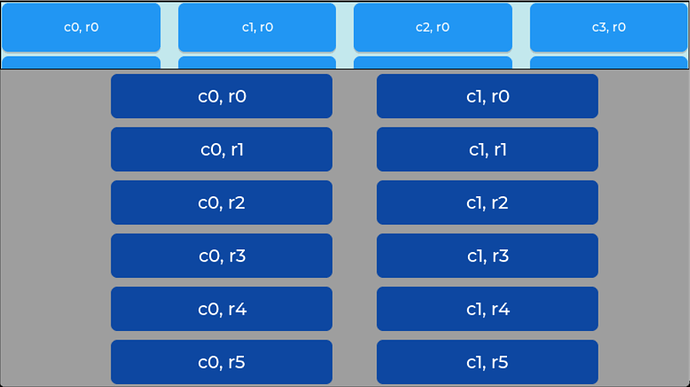

Windows Codeblocks

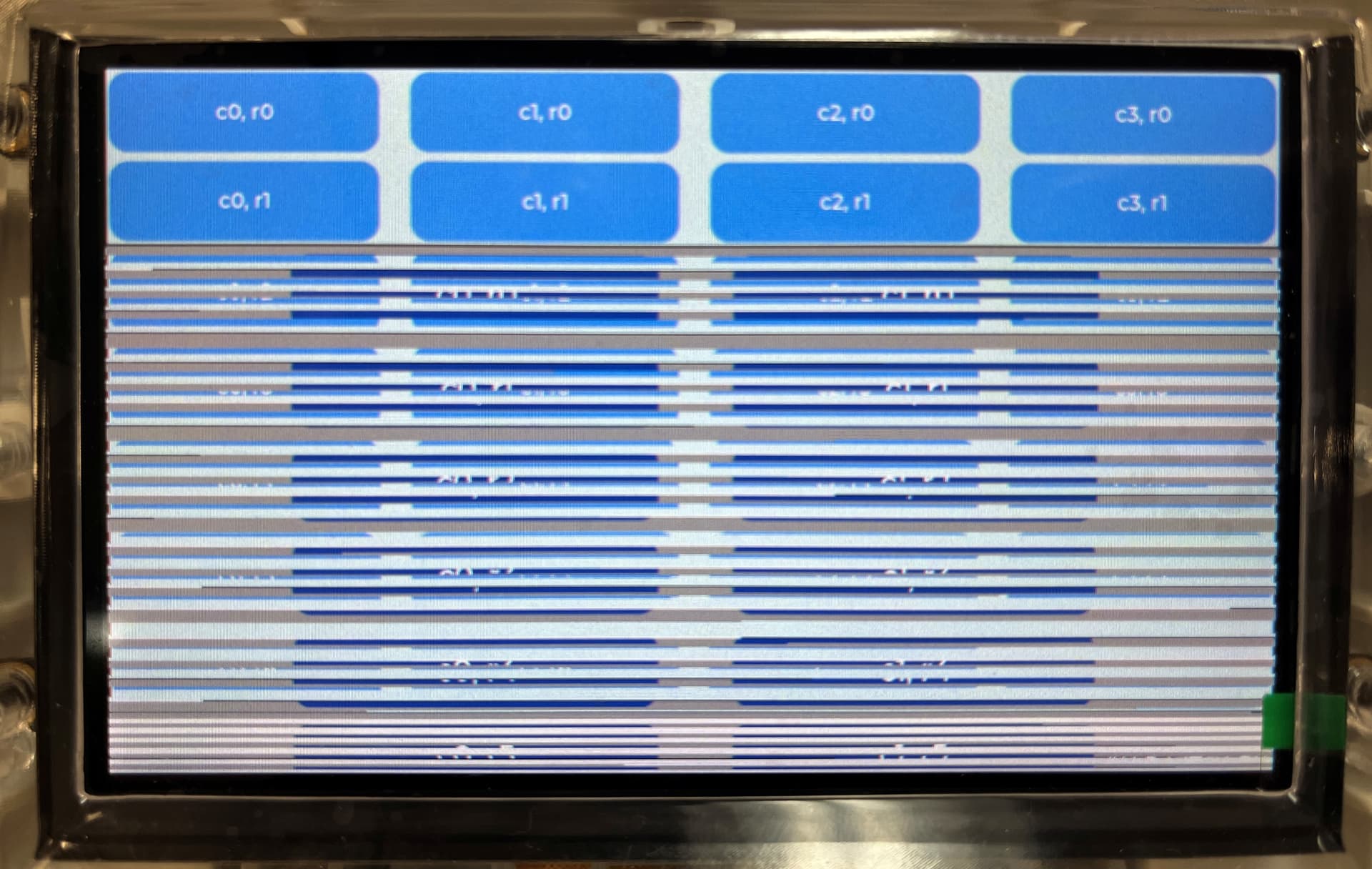

FT813 display and NXP MCXN947
Environment
- MCU/MPU/Boad: NXP MCXN947
- LVGL version: 9.4.0
