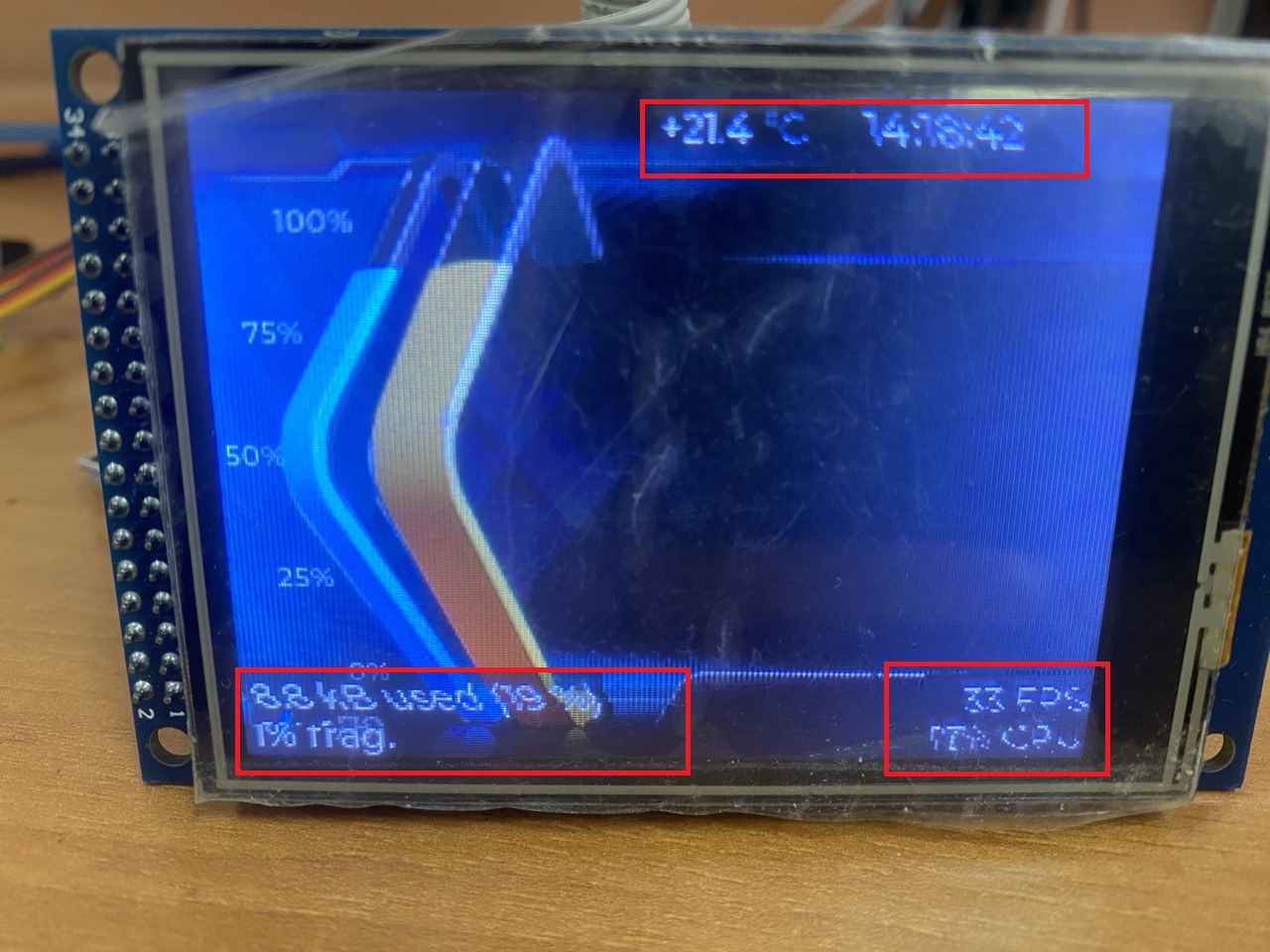

Crooked image LVGL 8.3.11
What MCU/Processor/Board and compiler are you using?
STM32H723VGT6
What do you want to achieve?
Correct work
What have you tried so far?
I tried buffers of different sizes.
Code to reproduce
Add the relevant code snippets here.
The code block(s) should be between ```c and ``` tags:
/*You code here*/
void lvgl_init()
{
static lv_disp_draw_buf_t draw_buf;
static uint16_t buf1[LCD_WIDTH * 10]; /*Declare a buffer for 1/10 screen size*/
lv_init();
lv_disp_draw_buf_init(&draw_buf, buf1, NULL, LCD_WIDTH * 10); /*Initialize the display buffer.*/
static lv_disp_drv_t disp_drv; /*Descriptor of a display driver*/
lv_disp_drv_init(&disp_drv); /*Basic initialization*/
disp_drv.flush_cb = tft_lvgl_disp_flush; /*Set your driver function*/
disp_drv.draw_buf = &draw_buf; /*Assign the buffer to the display*/
disp_drv.hor_res = lcd_get_width(); /*Set the horizontal resolution of the display*/
disp_drv.ver_res = lcd_get_height(); /*Set the vertical resolution of the display*/
lv_disp_drv_register(&disp_drv); /*Finally register the driver*/
}
#define LCD_WIDTH 240
#define LCD_HEIGHT 320
#define LCD_BL_ON() HAL_GPIO_WritePin(LCD_BL_GPIO_Port, LCD_BL_Pin, GPIO_PIN_SET)
#define LCD_BL_OFF() HAL_GPIO_WritePin(LCD_BL_GPIO_Port, LCD_BL_Pin, GPIO_PIN_RESET)
#define LCD_CMD_BASE ((uint32_t)0xC0000000)
#define LCD_DATA_BASE ((uint32_t)0xC0020000)
static void MPU_Config_FMC(void)
{
MPU_Region_InitTypeDef MPU_InitStruct;
/* Disable the MPU */
HAL_MPU_Disable();
/* Configure the MPU attributes for SDRAM */
MPU_InitStruct.Enable = MPU_REGION_ENABLE;
MPU_InitStruct.BaseAddress = 0xC0000000;
MPU_InitStruct.Size = MPU_REGION_SIZE_4MB;
MPU_InitStruct.AccessPermission = MPU_REGION_FULL_ACCESS;
MPU_InitStruct.IsBufferable = MPU_ACCESS_NOT_BUFFERABLE;
MPU_InitStruct.IsCacheable = MPU_ACCESS_NOT_CACHEABLE;
MPU_InitStruct.IsShareable = MPU_ACCESS_NOT_SHAREABLE;
MPU_InitStruct.Number = MPU_REGION_NUMBER0;
MPU_InitStruct.TypeExtField = MPU_TEX_LEVEL1;
MPU_InitStruct.SubRegionDisable = 0x00;
MPU_InitStruct.DisableExec = MPU_INSTRUCTION_ACCESS_DISABLE;
HAL_MPU_ConfigRegion(&MPU_InitStruct);
/* Enable the MPU */
HAL_MPU_Enable(MPU_PRIVILEGED_DEFAULT);
HAL_SetFMCMemorySwappingConfig(FMC_SWAPBMAP_SDRAM_SRAM);
}
