Animating complex widget trees on MCU — a raster-buffer caching experiment

General discussion
1

Setup: Cortex-M33 @240MHz, 1MB SRAM + 6MB PSRAM, LVGL v9.2. Complex widget: 50+ colored rectangles with rounded corners in a grid layout. All timings via lv_tick_get() (1 tick = 1ms).

Test code

The problem

When animating complex widget trees, LVGL re-renders the entire subtree every frame — layout, style resolution, and full software draw of every child. Even when only one property changes (scale, position, opacity).

On our Cortex-M33 with a 50-child widget (a typical settings page), combined translate + scale + fade animations show severe frame drops — the worst frame in a 6-frame window reaches 159ms. The UI stutters visibly and is effectively unusable for smooth transitions.

Single per-frame cost (direct) 60fps budget
Combined effects ~22ms

What we tried

Before starting the animation, we take a one-time lv_snapshot_take_to_draw_buf() of the widget, then animate the resulting flat lv_image instead of the live tree. Memory cost: w × h × 2 bytes (RGB565).

In other words: pay 1 frame of rendering upfront, then each subsequent frame is a cheap image blit rather than a full subtree walk.

Results

Snapshot capture overhead (one-time)

Size Pixels SRAM PSRAM
100×100 10K 3ms 2ms
200×200 40K 13ms 14ms
300×300 90K 24ms 29ms
390×450 175K 25ms 34ms

A fullscreen (390×450) snapshot costs only 4% more than a 300×300 — suggesting the overhead is dominated by draw-task dispatch, not pixel throughput.

Animation cost — snapshot vs. direct (6 frames, avg / max / min)

Effect Snapshot mode Direct mode
Translate 55 / 56 / 55 67 / 69 / 64
Scale 60 / 62 / 56 69 / 71 / 63
Opacity 55 / 56 / 55 84 / 89 / 63
Combined 60 / 62 / 57 132 / 159 / 63

Combined effects: snapshot is 55% faster overall.

Frame jitter (max − min)

Effect Snapshot Direct
Translate 1ms 5ms
Scale 6ms 8ms
Opacity 1ms 26ms
Combined 5ms 96ms

This is the real headline. Direct-mode combined animation has 96ms jitter — some frames are fine, some are catastrophically late. Snapshot mode stays within 5ms every frame.

PC contrast (Apple M2)

Effect Snapshot Direct
Combined 52ms 50ms

On a fast CPU the difference disappears entirely, confirming this is MCU-specific.

Real-world usage

We’re building ElenixOS (a watch OS targeting Cortex-M33), and the app launcher transition already uses this pattern. Two fullscreen (390×450) snapshots scale simultaneously — maintaining 20+ FPS. Without raster caching, animating even one fullscreen widget tree on this hardware drops below 10 FPS.

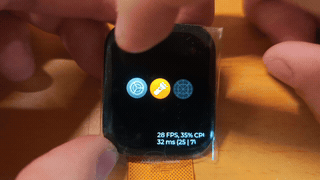

VID_20260623_153842

(GIF attached)

Observations

  1. Benefit scales with complexity. More children → larger gap. At 50 children, combined effects are 55% faster.

  2. Even opacity alone benefits. Blending 1 flat image is cheaper than blending 50 individual children widget-by-widget.

  3. Jitter is the real win. 96ms → 5ms jitter is the difference between unusable and smooth.

  4. Not universally beneficial. For a single lv_label, direct wins — the snapshot setup costs more than one label-render frame. This is an optimization for complex subtrees, not a global replacement.

Caveats

  • Memory: Fullscreen RGB565 = 351KB. Works for PSRAM platforms, impractical for pure 64KB SRAM.

  • PSRAM latency: QSPI-accessed PSRAM adds 15–30% overhead on the snapshot step (one-time, acceptable).

  • Stale content: The raster is frozen. Acceptable for short animations (100–500ms); longer ones need re-snapshot.

  • Complements LVGL, doesn’t replace it. This doesn’t touch the render loop — it’s a higher-level pattern.

Questions for the community

  1. Have others run into this? What workarounds have you used?

  2. Is this a common enough pattern that it should be a first-class LVGL utility (e.g., a lv_snapshot_anim helper)?

  3. Or is it better kept as a documented pattern that each project implements downstream using the existing lv_snapshot + lv_image + lv_anim APIs?

Curious to hear what approaches others have taken for smooth animations on MCU-class hardware.
